58302

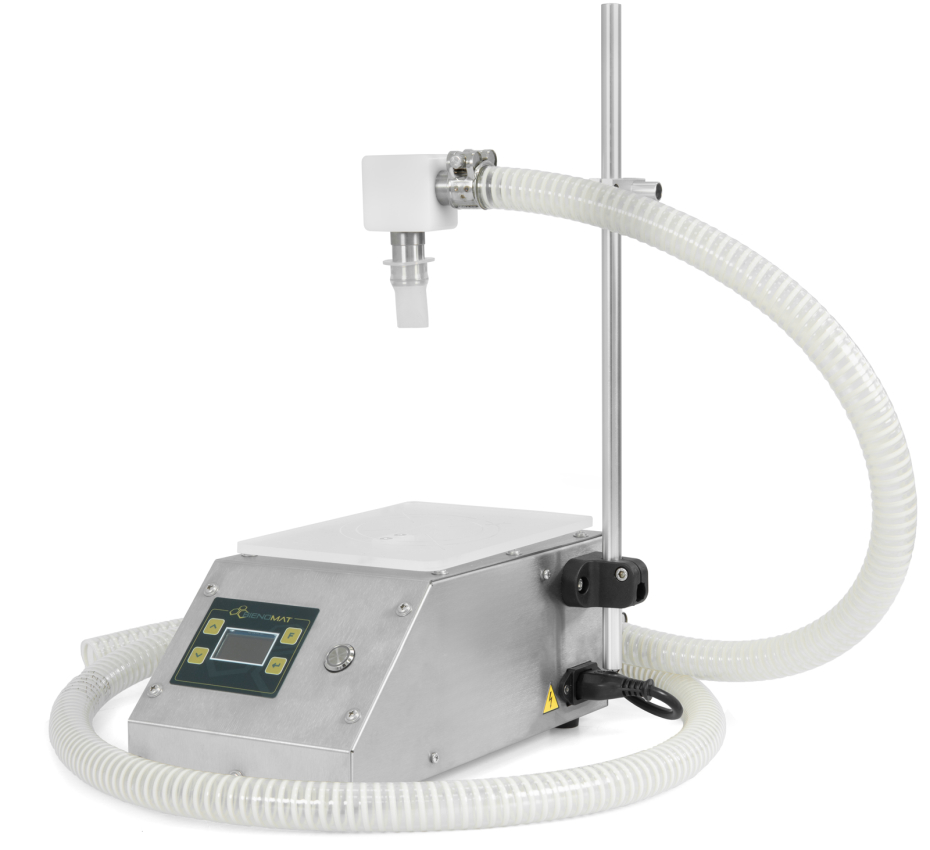

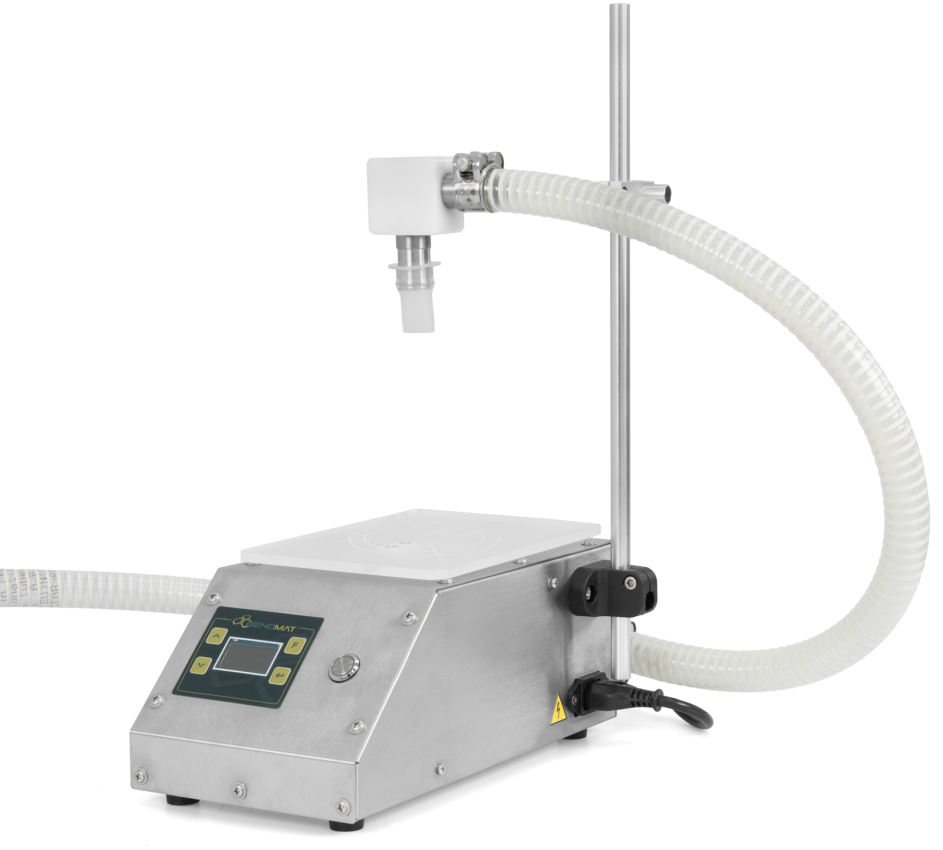

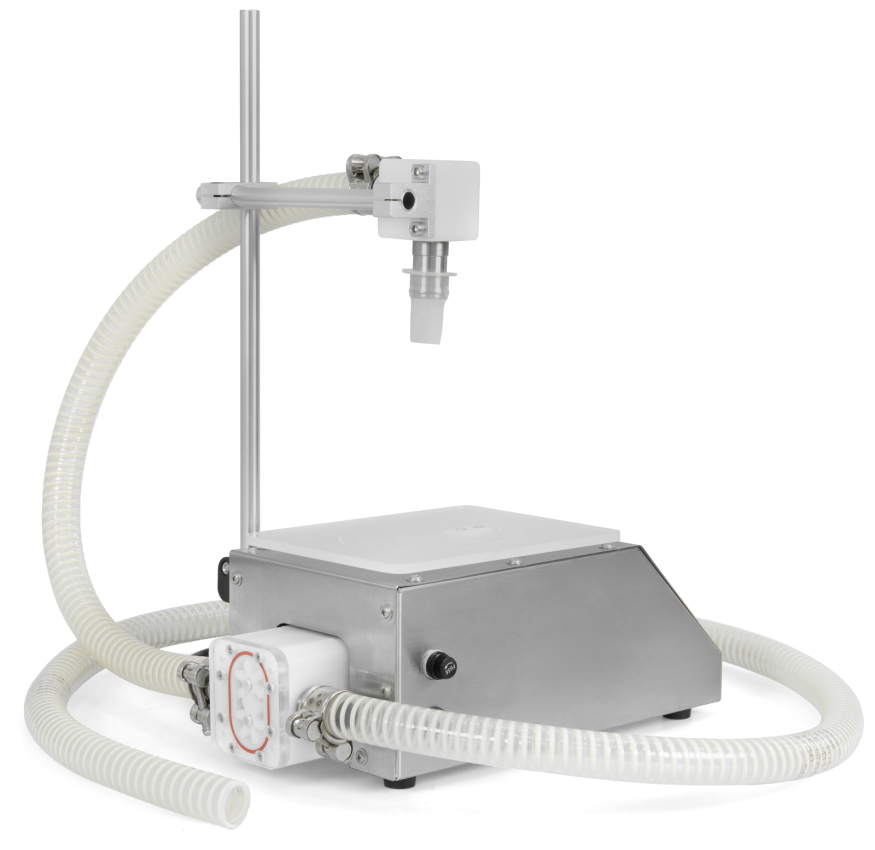

Bienomat® Honey Bottling Machine with Scale

NEW to our range

Product Description

The Bienomat® honey bottling machine with scale is a compact bottling machine designed specifically for beekeepers who want to fill their honey quickly, cleanly, and with consistent accuracy. The integrated scale controls the bottling process and ensures that each jar receives the desired amount.

In the selectable automatic mode, the dispensing process starts as soon as a jar is placed on the scale; alternatively, filling can be triggered manually at the push of a button. Thanks to its powerful pump, the device efficiently handles both small samples and larger batches.

Special Features

  • Integrated scale for precise weight dosing
  • 6 programmable dosing settings for different glass sizes
  • Automatic or manual start of the dispensing process

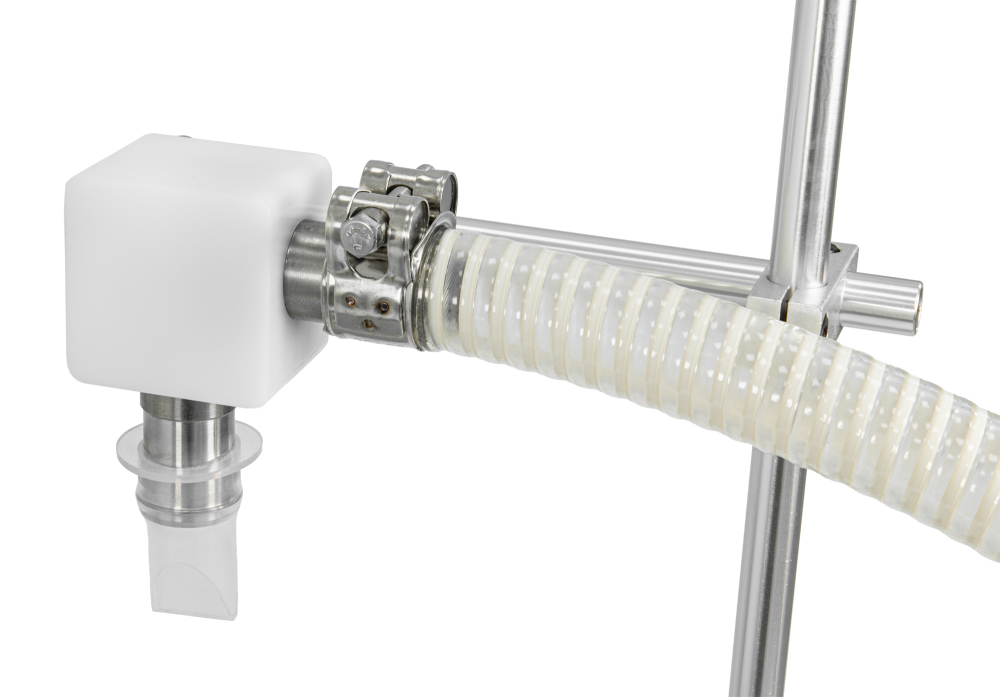

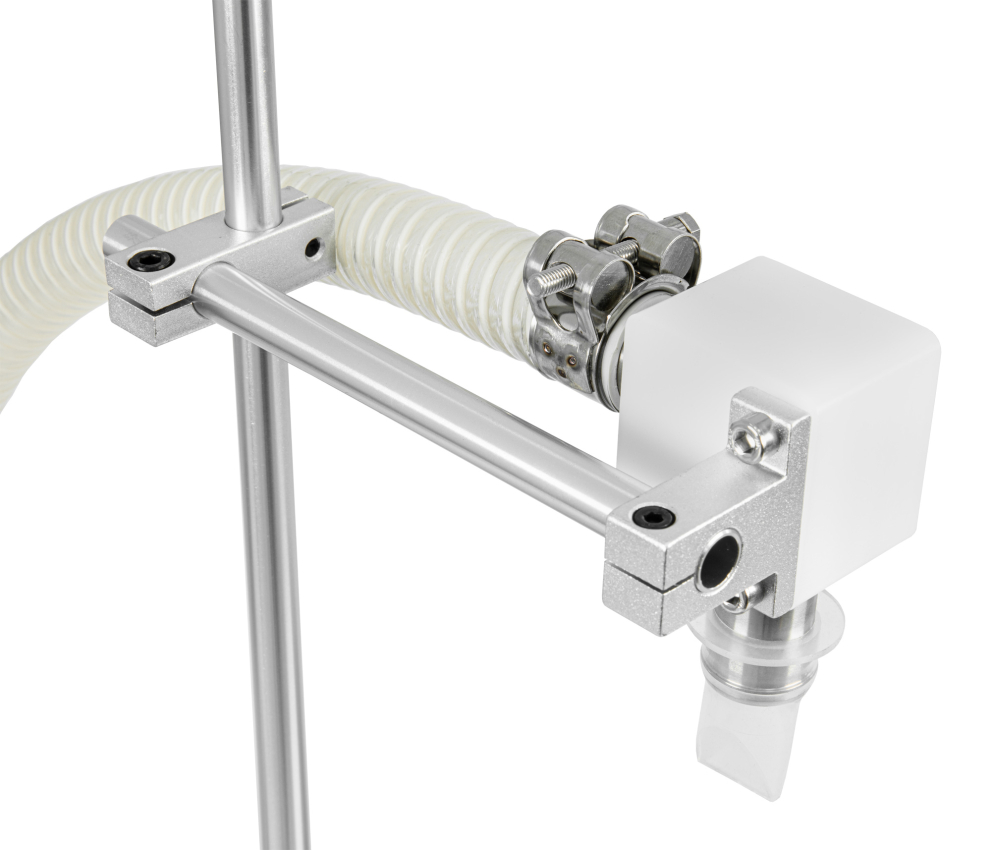

  • Adjustable dispensing arm and customizable working height for different glass heights

Advantages

  • High efficiency with a capacity of up to 180 kg of honey per hour at the appropriate honey temperature
  • Saves time, as settings are permanently saved and do not need to be reconfigured
  • Space-saving thanks to a compact housing, ideal for small extraction rooms or mobile use
  • Clean operation thanks to precise dosing without unnecessary overfilling

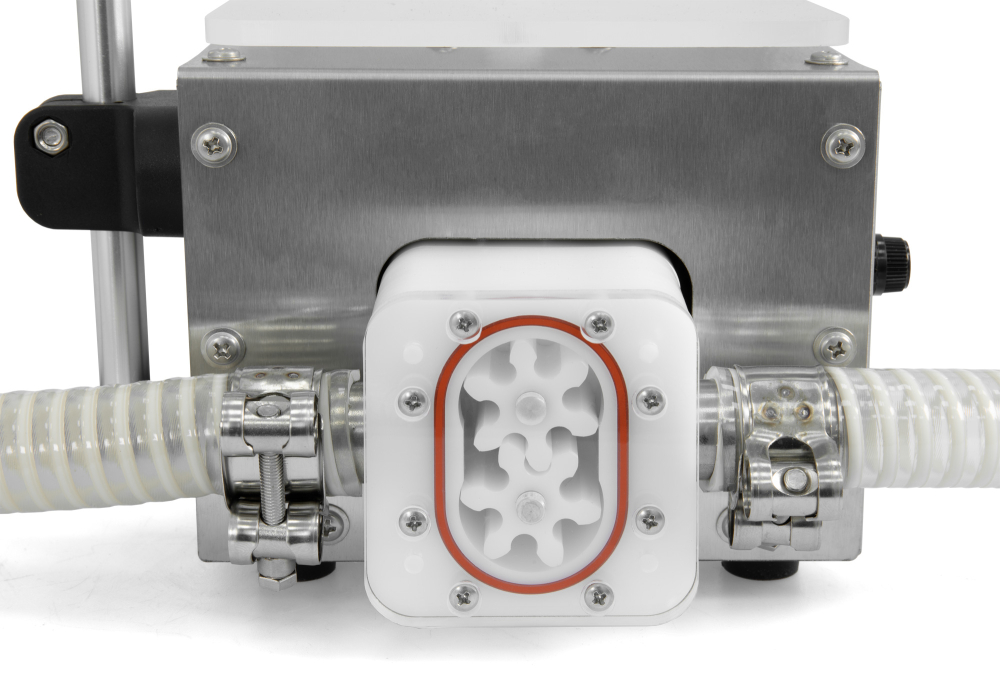

  • Easy to clean thanks to a removable pump housing and food-safe materials

Conclusion on the Bienomat Honey Filling Machine with Scale

The Bienomat® honey Bottling Machine with scale is a well-designed solution for all beekeepers who want to professionalize their filling process without taking up much space. It combines precise dosing, high performance, and user-friendly operation in a compact unit and is suitable for both small-scale direct sellers and ambitious hobby beekeepers.

Take advantage of this Bottling Machine now and make showing and selling honey more efficient and stress-free.

Holtermann’s Practical Tip: Warm your honey to about 30–37 °C before filling so that it flows well and the Bienomat® Honey Bottling Machine with Scale can dispense the honey particularly evenly. This reduces air pockets in the jar and results in a clean, appealing appearance that boosts sales.



in stock
849,00 EUR incl. 19% tax excl. Shipping costs
Order Quantity allowed in 1-steps!
Add to cart
PayPal Express Checkout

Technical Specifications for the Bienomat Honey Filling Machine with Scale

General

Item No.:

58302

Product Name:

Bienomat® Honey Bottling Machine with Scale

Product Type:

Honey Filling Machine

Voltage:

230 V

Power:

50 W

Capacity

Approx. dosing range:

50–2000 g per fill

Throughput (approx.):

up to 180 kg of honey per hour at approx. 37 °C

Scope of Delivery

Scope of delivery:

  • 1x Bienomat honey Bottling Machine with scale
  • 1x suction hose
  • 1x connecting hose

Material

Housing and parts in contact with the product:

Stainless steel

Other components:

food-grade plastic

Nozzle:

Silicone

Dimensions

External dimensions (L x W x H) approx.:

33 cm x 20 cm x 50 cm

Cradle area (L x W) approx.:

19 cm x 14 cm

Power cord length approx.:

3 m

Weight

Empty weight approx.:

4 kg

Quick Guide – Bienomat® Honey Bottling Machine with Scale

1. Setup

  • Place the unit on a level, stable surface.
  • Lay the supply hose so that there are no tripping hazards.

2. Connect the Suction Hose

  • Insert the suction hose into the honey container.
  • Ensure there are no air pockets so that the pump draws in the honey properly.

3. Prepare the unit

  • Connect to a 230 V power source.
  • Adjust the dispensing arm and spout so that the glass is centered directly under the nozzle.

4. Select dosing settings

  • Select the desired fill volume using the dosing setting.
  • Use one of the 6 preset positions or customize the setting.

5. Select the filling mode

  • For Automatic: Place the glass on the scale; the machine starts automatically.
  • For manual mode: Position the glass and start the dosing process by pressing the button.

6. Monitor the filling process

  • Check the fill level in the glass, especially with new settings.

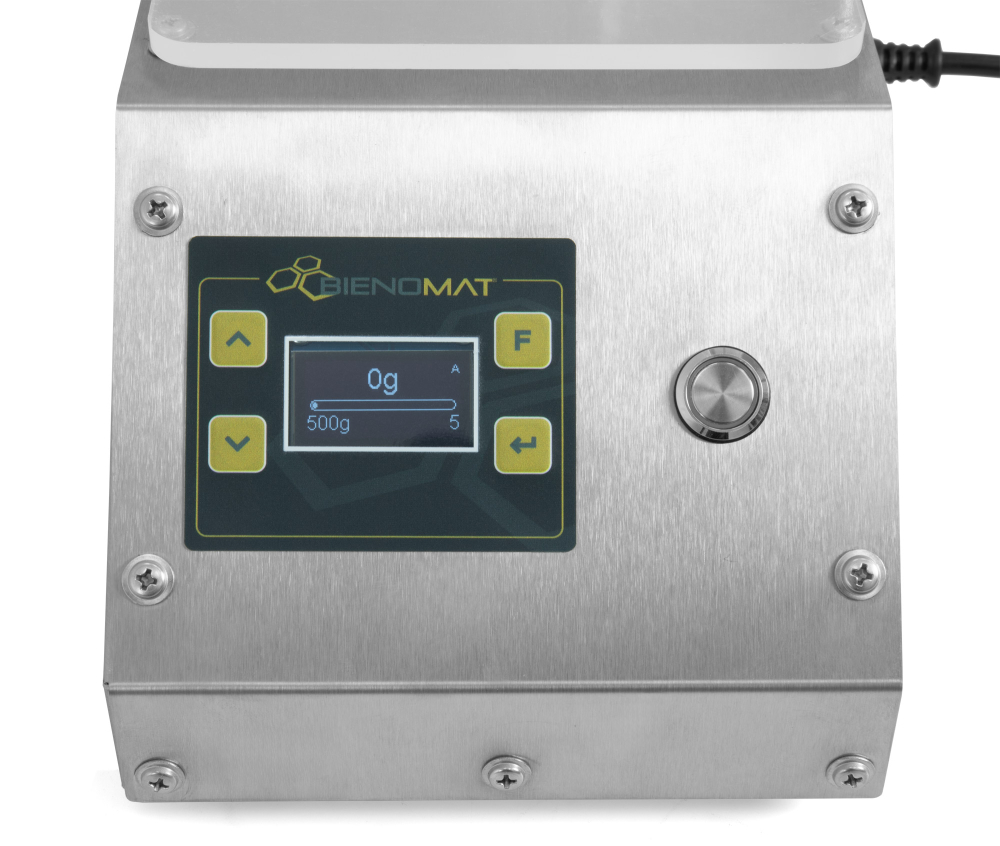

  • Keep an eye on the number of fills shown on the display.

7. After filling

  • Rinse the unit with warm water; remove the pump housing if necessary.
  • Allow any remaining honey to drain completely, and store the device in a dry place.

The machine is suitable for both hobby beekeepers and small- to medium-sized operations that regularly bottle honey and value clean, consistent dosing.

You place the empty jar on the scale; the Bienomat honey filling machine detects the weight and, in automatic mode, starts the dispensing process until the preselected amount is reached.

Yes, thanks to the dosing range of 50 to 2,000 g and the 6 programmable settings, you can work flexibly with everything from sample jars to larger retail jars.

Cleaning is relatively easy thanks to the removable pump housing and the food-safe materials used. Warm water is sufficient for most cleaning tasks.

The safety and operating instructions in the included user manuals and the statutory accident prevention regulations must be followed.

Persons who, due to their physical, sensory, or mental capabilities, inexperience, or lack of knowledge, are unable to operate this device safely must not use it, or must not use it without supervision or instruction from a responsible person.

Unauthorized modifications can impair the device’s functionality and, if carried out improperly, may result in serious injury or property damage. The warranty is generally void in the event of unauthorized modifications.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest

Read the included instruction manual before use.

For the purposes of accident prevention regulations, this device is classified as an electric honey Bottling Machine, for which the following safety precautions must be observed:

  • Disconnect the device from the power supply before performing any work on the electrical or mechanical components; do not pull on the power cord; do not touch with wet hands—risk of electric shock!
  • Do not process any explosive, flammable, or solvent-containing liquids. There is a risk of fire and explosion!
  • Connect the device to a grounded outlet as specified on the nameplate. Use a residual current device (RCD) with a maximum rated trip current of 30 mA and test it regularly.
  • Inspect the unit and power cord for damage before and after use; operate the unit only if it is properly assembled and the housing is undamaged.
  • Protect the motor, control system, and electrical components from moisture, even during storage.
