38963

Smalto® V Solar Wax Extractors Combi

Product description

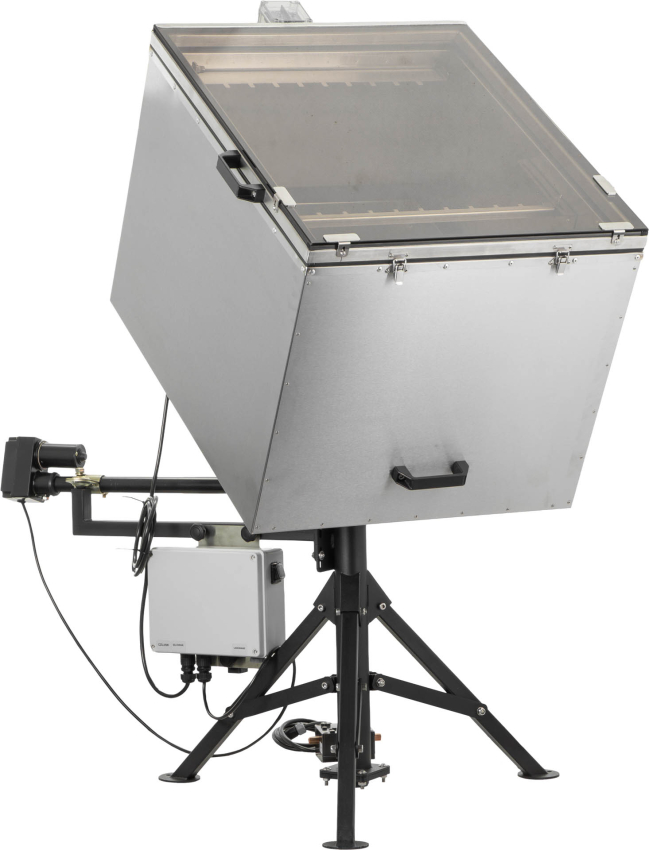

The Smalto V Solar Wax Extractors Combi with Smalto V Solar Wax Extractors and solar follower module with 12 V battery is a modern complete solution for wax processing with solar energy. The combination device combines the powerful Smalto V Solar Wax Extractors with an automatic, battery-operated solar follower module. The solar radiation heats the wax, while the motor and controls run reliably via the integrated battery. This allows you to achieve maximum wax yield with minimum manual effort, ideal for professional beekeepers and ambitious hobby beekeepers.

Special features of the Smalto V Solar Wax Extractors combination

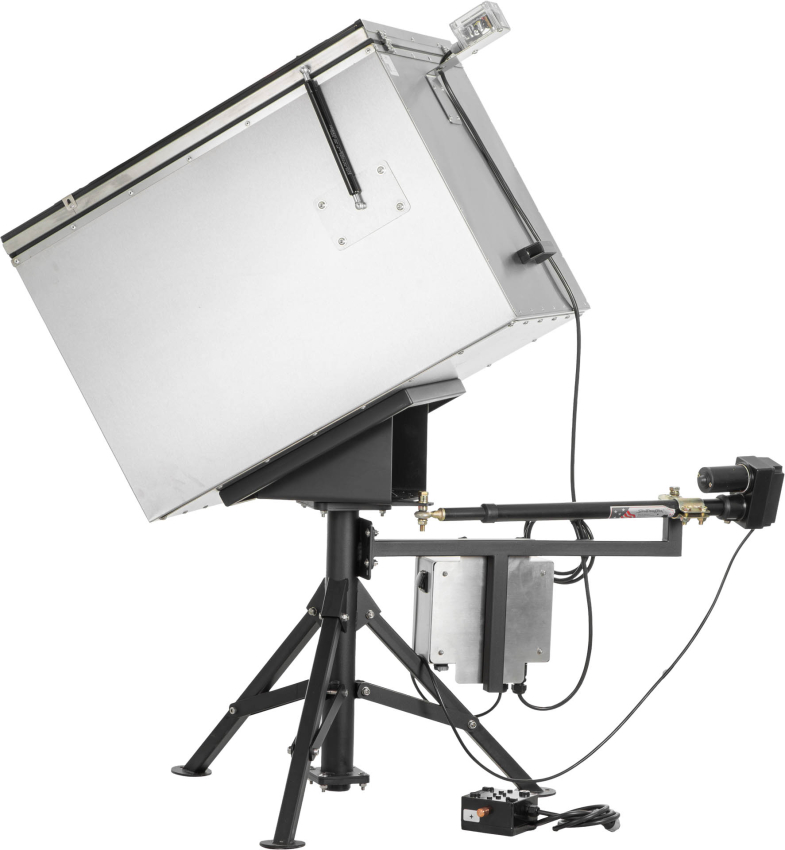

  • Automatic sun tracking via sun sensor and electric drive for permanent optimum alignment to the sun
  • Battery-powered drive with integrated 12 V battery with 18 Ah for controlling the tracking system without mains power
  • Large capacity for melting wax from up to 10 combs simultaneously
  • Double-insulated stainless steel body with mineral wool and strong smoked glass for fast melting and high efficiency
  • Adjustable frame holder for different frame sizes such as DN, Zander, Simplex, Langstroth, Dadant US and Blatt

Advantages of the Smalto V Solar Wax Extractors Combi: Solar Wax Extractors with automatic sun tracking

  • Maximum wax yield thanks to continuous alignment to the sun without manual readjustment
  • Significantly shorter melting times thanks to strong insulation, smoked glass and airtight melting chamber
  • High flexibility at the apiary thanks to battery-powered tracking and self-sufficient outdoor operation directly at the apiary

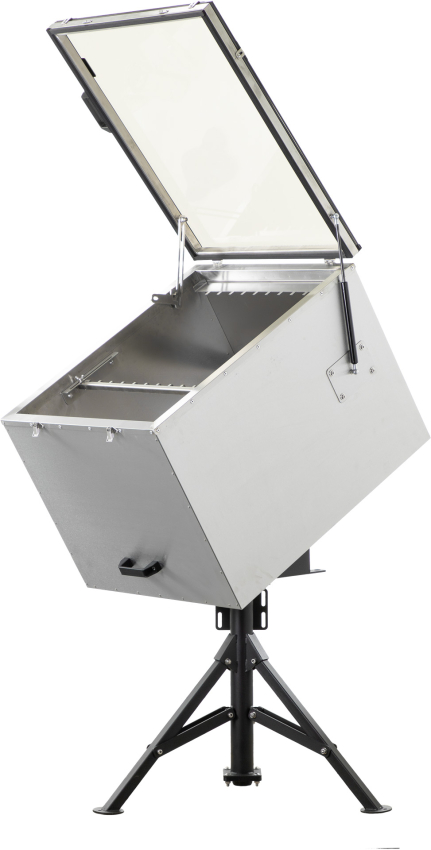

  • Convenient operation thanks to damped glass lid with locking mechanism, integrated lid opening aid and stable base frame
  • Long-lasting investment thanks to robust stainless steel design, weatherproof construction and components designed for outdoor use

Conclusion of the Smalto V Solar Wax Extractors Combi

The Smalto V sun wax melter combi with automatic sun follower module and12 V battery takes your wax processing to a new level of efficiency. You consistently use solar energy to melt the wax, while the motor and controls run reliably via the battery. This saves you time, reduces wax losses and allows you to work independently of the power grid directly at the apiary.

Discover this combination device and optimize your wax melting with sophisticated solar technology and sophisticated battery technology.

Holtermann practical tip: Place the Solar Wax Extractors Kombi in a fixed, sunny position with an unobstructed view to the south if possible. Fully charge the 12 V battery before planning several batches. This ensures that the automatic sun tracking works reliably throughout the day and you can make the most of every phase of the sun.



in stock
2.385,00 EUR incl. 19% tax excl. Shipping costs
Order Quantity allowed in 1-steps!
Add to cart
PayPal Express Checkout

Product data Smalto® V Solar Wax Extractors Combi

Item no.
  • 38963

Designation

 Smalto® Solar Wax Extractors Combi

Article type

Solar Wax Extractors with solar follower module

general

Product type:

Solar Wax Extractors combi device with automatic sun tracking module

Product name:

Smalto V Solar Wax Extractors combi with sun follower module and 12 V battery

Area of application:

Wax melting with solar energy outdoors for beekeepers

Tracking & drive:

Automatic alignment to the sun via sensor and electric linear drive

Operating mode:

battery-operated, independent of external power supply (12 V, 18 Ah)

Capacity

Wax tray capacity approx:

approx. 5 liters

Frame capacity:

up to 10 combs per pass

Frame widths approx:

approx. 320 to 470 mm

Maximum frame height approx:

up to approx. 300 mm

Suitable frame dimensions approx:
  • DN up to approx. 223 mm height
  • ZA up to approx. 285 mm height
  • Dadant US and Langstroth up to approx. 285 mm height
  • Dadant Blatt up to approx. 300 mm height
  • Simplex up to approx. 218 mm height

Scope of delivery

Solar Wax Extractors:

Smalto V with melting body and wax tray made of stainless steel

Sun follower module:

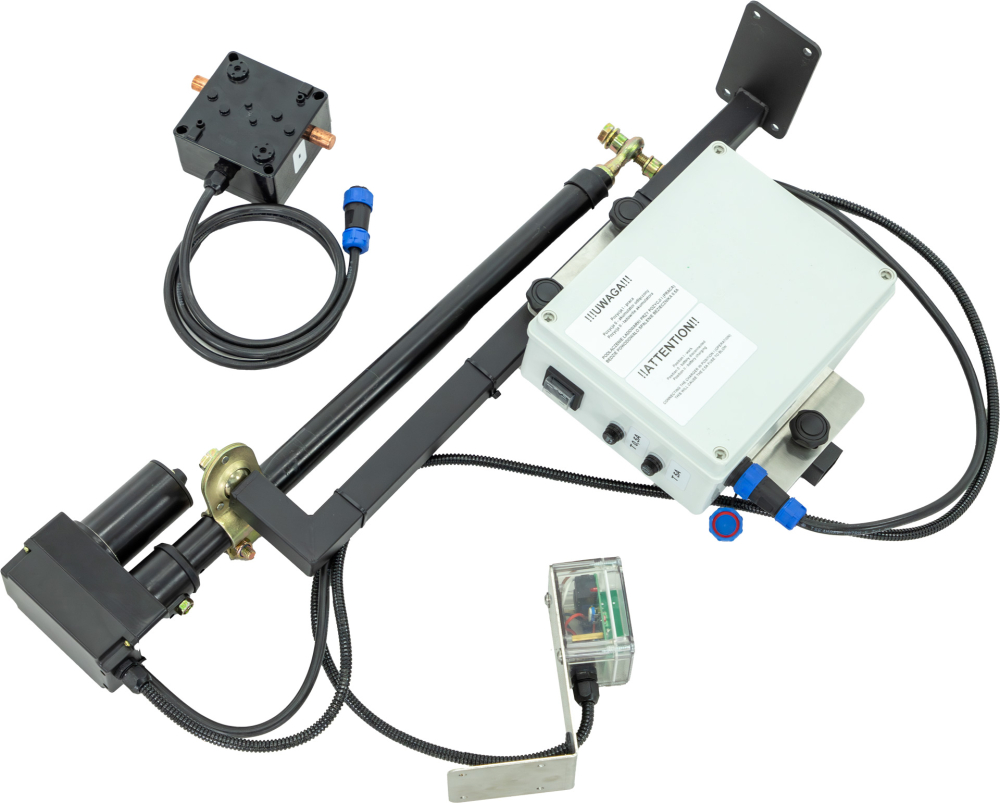

Sun follower module with automatic sun tracking (sensor and electric linear drive)

Base frame:

Stand with rotating, lockable frame and swivel handle

Battery box:

12 V battery (18 Ah) in weatherproof housing, protection class IP65

Material

Melting body:

Stainless steel

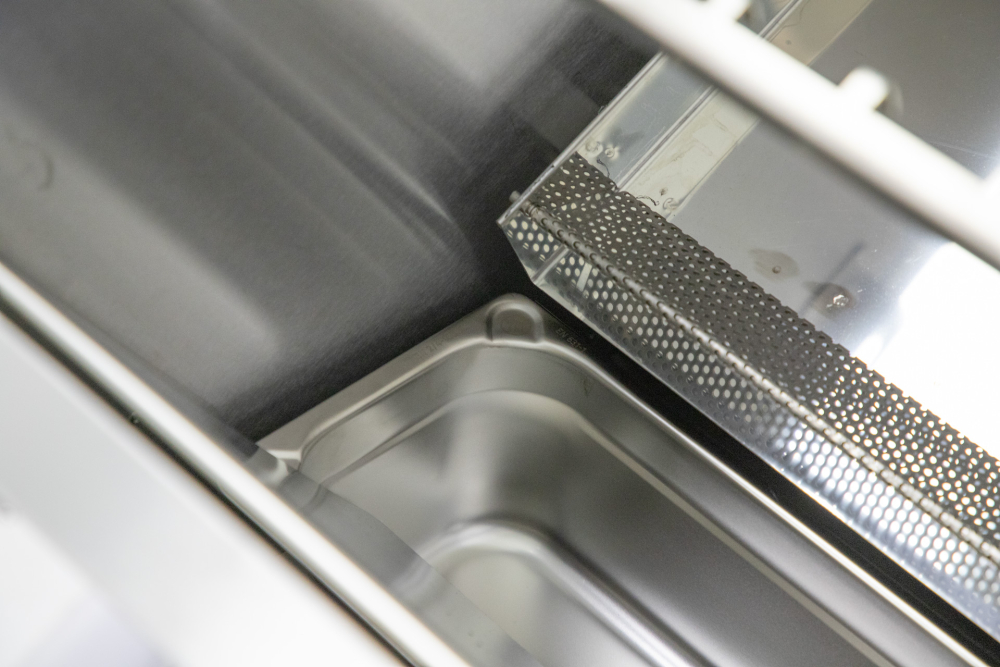

Wax tray:

Stainless steel

Insulation:

Double jacket with mineral wool, insulation thickness approx. 35 mm

Glass lid:

tinted smoked glass, thickness approx. 6 mm

Base & frame:

Powder-coated steel, black base and drive, gray battery box

Dimensions

Interior width approx:

56 cm

Interior height approx:

69 cm

Interior depth approx:

50 cm

Inner tub dimensions approx:

50 x 50 cm

Total height with stand approx:

143 cm

External dimensions carcass (L x W x H) approx:

77 x 62 x 58 cm

Weight approx.

Weight approx:

106 kg

FAQ about the Smalto V Solar Wax Extractors Combi with sun tracker

The Smalto V Solar Wax Extractors Combi with solar tracking uses solar radiation to heat the wax in the insulated stainless steel body with smoked glass cover. A sensor with electric drive automatically aligns the appliance with the sun. The motor and control unit are powered by a 12 V battery with 18 Ah.

No, a fixed power connection is not necessary. The automatic sun tracking system and the drive work entirely via the integrated battery. All you need is a suitable charger to recharge the battery if necessary.

The adjustable holder is designed for frame widths of around 320 to 470 mm. For example, Deutsch Normal (DN), Zander (ZA), Dadant US, Langstroth, Dadant Blatt and Simplex are suitable within the specified height and thickness ranges.

The Solar Wax Extractors Kombi is designed for melting wax from up to 10 combs per pass. It is therefore also suitable for larger apiaries with higher wax volumes and ensures efficient wax recovery.

Yes, the body, frame, battery box and drive are designed for outdoor use. For a secure stand, the appliance should be positioned on a firm, level surface. During longer breaks in operation, dry, protected storage is recommended to protect the material and electronics in the long term.

Quick guide - Smalto V Solar Wax Extractors combi with 12 V rechargeable battery sun tracker

1. set up

  • Place the appliance on a firm, level surface with as little sunlight as possible.
  • Mount the stand and tighten all screws securely.

2. prepare the battery

  • Open the battery box and insert the fuses supplied.
  • Screw the fuse caps back on tightly and close the battery box.
  • If necessary, charge the battery with the appropriate 12 V charger.

3. install the tracking system

  • Attach the sensor and electric drive to the frame according to the instructions.
  • Check cable connections and plug in correctly.

4. insert the frames

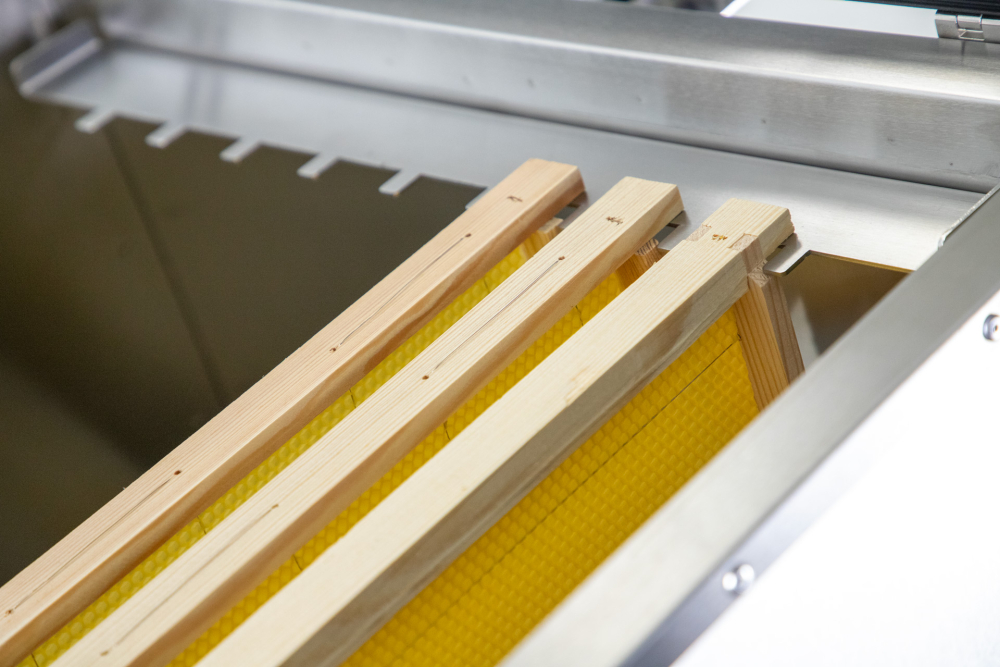

  • Adjust theframe holder to the frame width used.
  • Insert the honeycombs into the melting chamber and ensure that they are securely seated.

5. close the lid and align the appliance

  • Close the glass lid and lock it airtight with the clamps.
  • Roughly align the appliance with the sun, the automatic tracking will then take over the fine adjustment.

6. start the melting process

  • Check that the battery is sufficiently charged.
  • Switch on the tracking system and observe the melting process.
  • Do not leave the device unattended during operation.

7. after melting

  • Open the lid carefully, as the interior and wax are hot.
  • Remove the melted wax and pour it into the clarifying container or molds as required.
  • Clean the melting chamber and wax tray with warm water after cooling down.

8 Storage and care

  • Store the appliance as dry and protected as possible after the season.
  • Recharge the battery regularly and check electrical components for tightness.

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Independent modifications may impair the functionality and, if not carried out correctly, may result in serious damage to persons and property. The warranty is generally void if unauthorized modifications are made.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest
Read the supplied operating instructions before use.
Blaues Icon mit schematischer Zeichnung von Handschuhen
Wear heat-insulating hand protection.
