Wax melting and frame washing system according to Kolbe

Product description

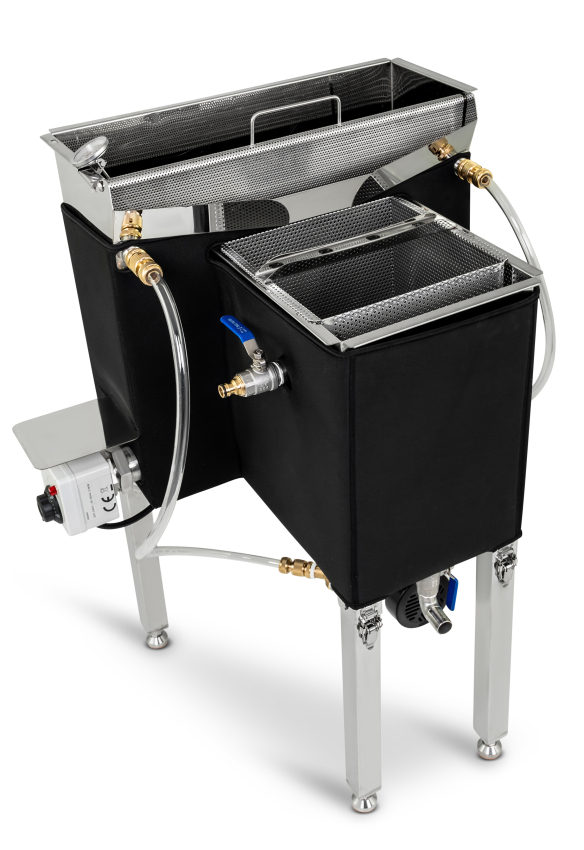

The wax melting and frame washing system combines two work steps in one device: melting wax and washing the frames. The innovative concept of this unique system, developed by Ralf Kolbe, offers a practical solution and makes beekeeping work easier.

Easy handling

Height-adjustable: easy and back-friendly working thanks to height-adjustable legs

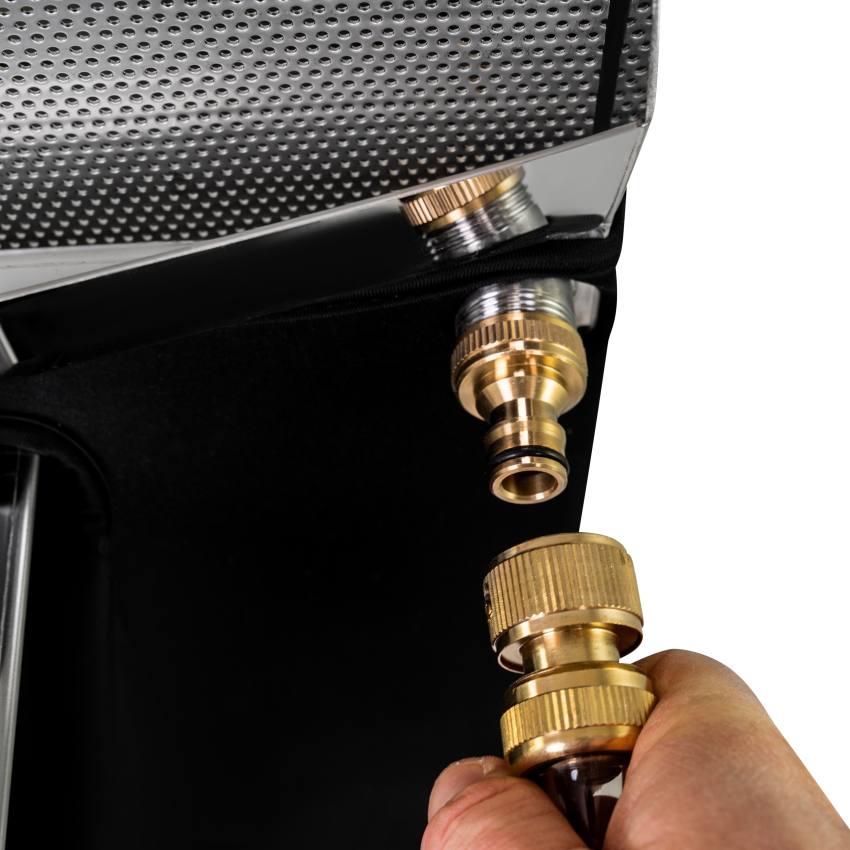

Quick connector system: quick and easy connection of the hoses
Temperature control: a hanging thermometer makes it easy to check the water temperature

Accessories included

Insulation jacket: the insulation increases heat efficiency and improves temperature control
Pomace basket: to collect the pomace for clean working

Supplied

in parts: for self-assembly
Fully assembled: no assembly required

Tip

In combination with the Bienomat^® wax melting centrifuge, the yield from the wax pomace can be increased considerably.

Versandeigenschaft:

in stock

1.229,00 EUR
incl. 19% tax excl. Shipping costs

Add to wish list

Here you will find the right accessories (not included) for the Kolbe wax melting and frame washing system:

400 V / 3 x 230 V 16 A power adapter

Item no. 39652

3-way distributor: operate three devices with just one power connection
Robust design: Rubber handles and sheathing ensure durable and resistant quality

View article

Product data Wax melting and frame washing system according to Kolbe

Item no. (in parts)	3965
Item no. (fully assembled)	39650
Designation	Wax melting and frame washing system according to Kolbe
Article type	Wax melting system, frame washing system, wax melting washing system

Special features

2-in-1 function

Wax melter and frame washer in one device

Technical specifications

Power connection	Suitable power sources for safe operation: A power connection (400 V) is recommended 32 A, 400 V, CEE red power socket with at least 4 mm² supply cable Two separately fused 16 A, 230 V Schuko sockets, connected directly to the power distribution board
Heating coils	Quantity: 2 Power: 230 V / 3,500 W each Removable: the heating coils can be unscrewed for cleaning
Pump	Quantity: 1 Power: 230 V / 120 W
Ball valves	Quantity: 5 Material: Stainless steel Diameter: ¾″

Filling volume

Filling volume approx:

73 liters

Dimensions

External dimensions (L x W x H) approx:

53 x 87 x 95 cm

Weight

Empty weight approx:

38 kg

Instructions for use

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Unauthorized modifications will void the warranty and may result in serious personal injury or property damage if not carried out correctly.

The appliance is only suitable for indoor use. Do not use or store the appliance below 0°C. Repairs may only be carried out by qualified specialists.

Read the supplied operating instructions before use.

Wear suitable hand protection.

Safety instructions

This electrical appliance has a high power consumption and may only be operated on appropriately designed power sources. Use on a single 16 A, 230 V socket is not recommended as this can lead to overloading, damage to the appliance or safety risks. Connecting to commercially available multiple sockets, extension cables or several devices via a multiple socket must always be avoided, as this may exceed the maximum fuse limit and, in the worst case, lead to fuse tripping, short circuits or fires.

Suitable power sources for safe operation are either a 400 V 16 A CEE power socket or two separately fused 230 V 16 A safety sockets. We recommend our 400 V / 3 x 230 V 16 A power adapter, item no. 39652.

Please note that with a power consumption of approx. 3.5 kW, the use of a single safety plug is at its limit. Ensure that the circuits are appropriately fused and that the connections comply with the applicable electrical regulations. If in doubt, please contact a qualified electrician to ensure safe installation and operation of the appliance.

Keep hands, hair and clothing away from moving parts! - Risk of injury!
Protect electrical connections from moisture. Ensure that cables are not damaged or trapped. Never open the drive module, power supply or plugs! - Risk of electric shock!
Avoid contact with hot components during operation! - Risk of burns!
