Imgut<sup>®</sup> ProLine 4 W extractor Ø 43 hand

Main page / Honey Extractors / Honey Extractors with tangential extractor basket / Imgut® ProLine 4 W extractor Ø 43 hand

5420

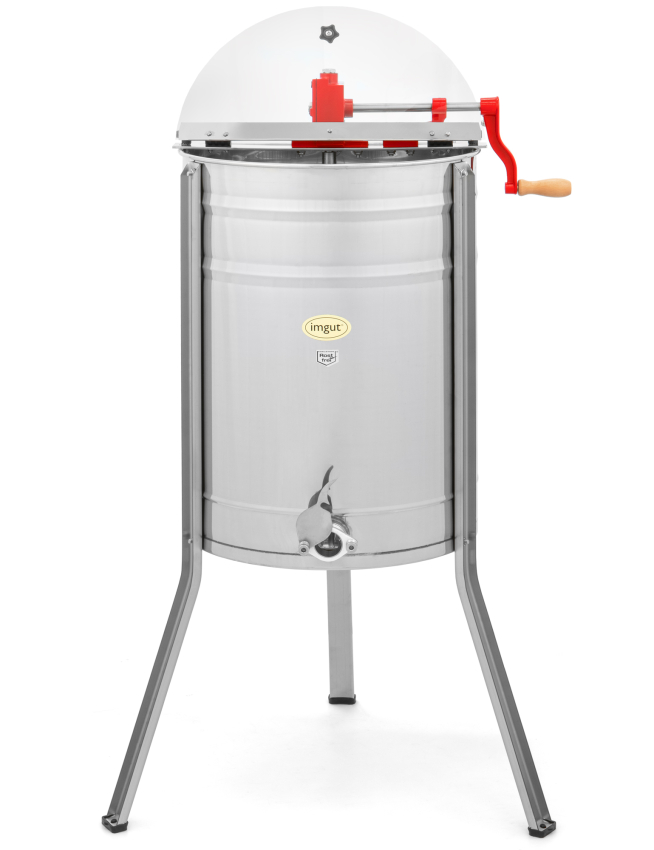

Imgut^® ProLine 4 W extractor Ø 43 hand

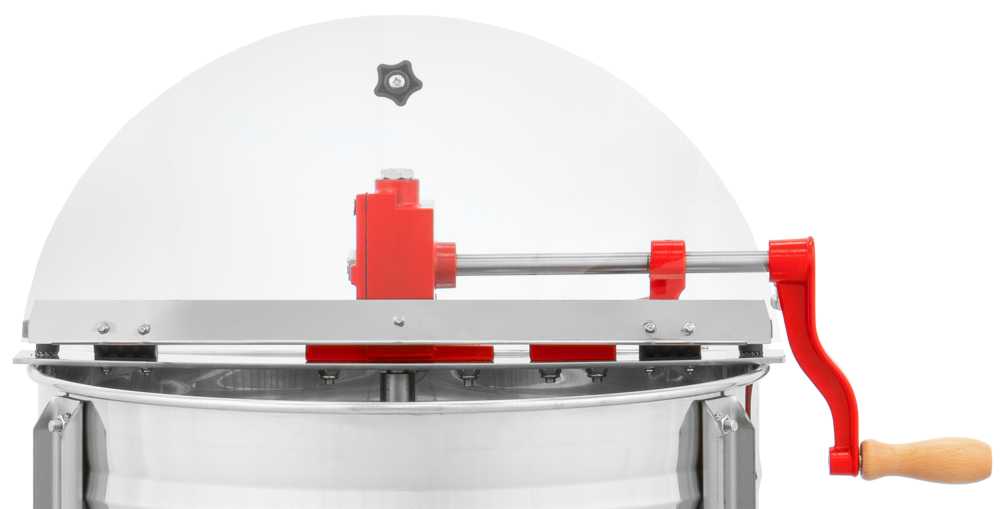

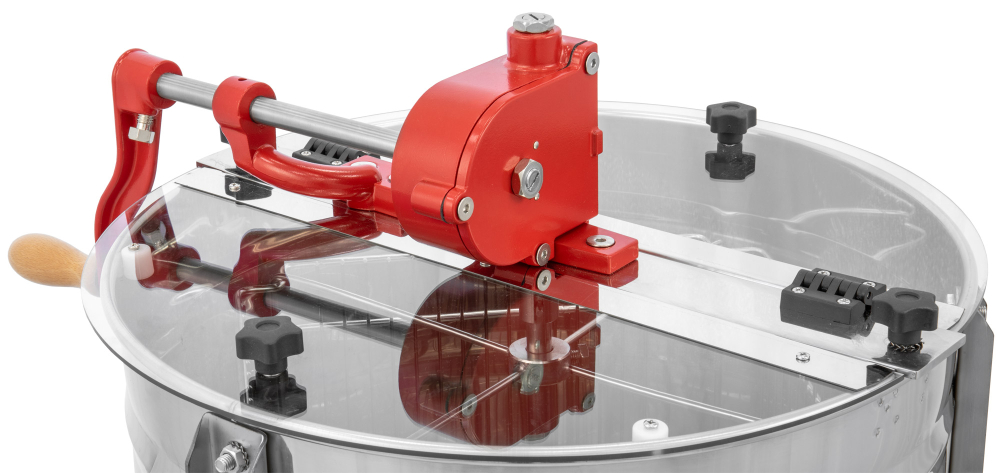

Side manual drive with freewheel and back pressure brake
Hive with floor-level outlet

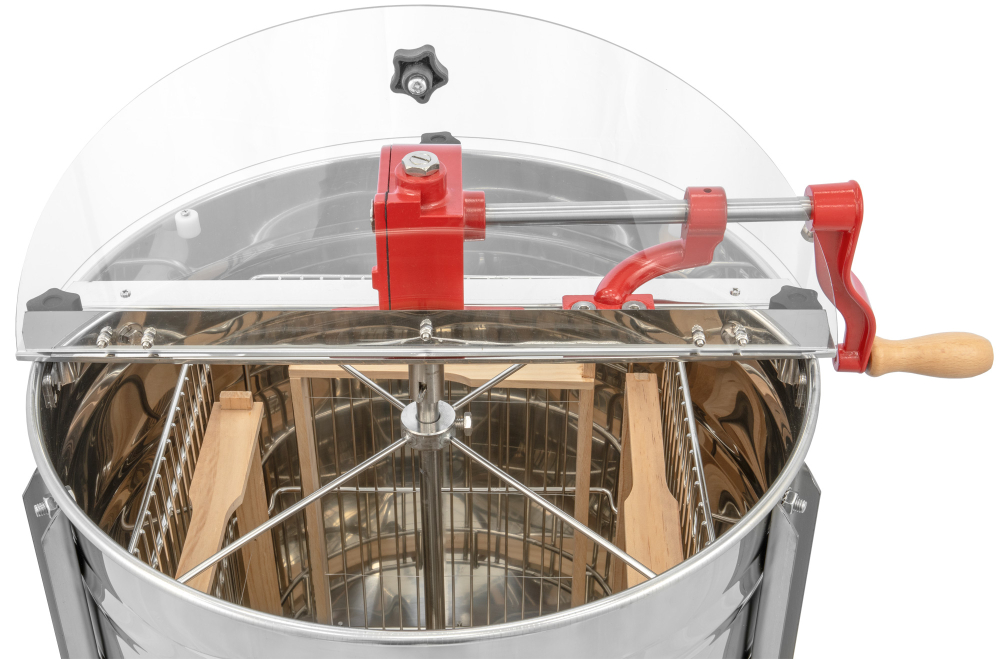

Tangential round mesh basket suitable for 4 combs up to 245 mm high, e.g:
- Standard size
- Zander
- Langstroth

Out of stock

399,00 EUR
incl. 19% tax excl. Shipping costs

Add to wish list

Product information
Technical data

Our Imgut^® ProLine Honey Extractors come in solid, German construction from the Lüneburg Heath. The centrifugal kettle, Skeps, squeeze taps and crossbar are all made of stainless steel. The vats are argon plasma-welded and, depending on the model, have one or two floor-level outlets so that the honey can run out completely without tilting the extractor, while the extractor basket has ball bearings and is made of sturdy, easy-care round bars.

Optionally equipped with manual side drive or motorized top drive. A centrifugal spinner with manual drive can also be retrofitted or converted with a motorized top drive at a later date. We stock both accessories and spare parts for our spin extractor product range.

General information

Item no.	5420
Designation	Imgut^® ProLine 4 W centrifuge Ø 43 hand
Article type	Honey extractor

drive

Drive type	Side manual drive
Special feature	with freewheel and back-pressure brake

Spin basket

Basket type	Tangential basket
Honeycomb number & dimensions approx.	suitable for 4 honeycombs up to 245 mm high, e.g: standard size Zander Langstroth
material	Stainless steel
Wire thickness round bars approx.	-
Special feature	ball bearing, ball diameter approx: 8 mm with center shaft

centrifugal bowl

material	stainless steel
Material thickness approx.	2.5 mm
Workmanship	Argon plasma-welded

Pinch tap

material

stainless steel

Dimensions

Technische Zeichnung einer Honigschleuder mit Seiten-Handantrieb

Outer diameter of kettle approx.	(A) 43 cm
Boiler height approx.	(B) 60 cm
Total height incl. drive approx.	(C) 115 cm
Pinch tap diameter approx.	(D) 1,5"
Outlet height approx.	(E) 43.5 cm

Weights

Empty weight approx.

17 kg
