5409

Imgut® ECO 3-frame Honey Extractor – tabletop model, hand-crank, tangential

Product Description:

The Imgut® ECO 3-Comb Honey Extractor is a compact, sturdy tabletop extractor made of stainless steel® with a top-hand drive and a tangential basket, ideal for beginners and hobby beekeepers. The floor-level drain ensures particularly efficient honey extraction.

Special features of the Imgut ECO 3W Honey Extractor (manual tabletop model):

  • 3-comb tangential basket for frames up to 245 mm in height
  • Top-hand drive with durable steel gear crank
  • Floor-level outlet for complete honey drainage
  • Ball-bearing construction with an 8-mm centrifuge ball for smooth operation

Advantages of the Imgut ECO 3W Honey Extractor (manual tabletop model):

  • Clean workmanship: stainless steel, 2.5 mm material thickness, argon plasma-welded
  • Smooth operation: Ball-bearing drive prevents vibrations
  • Easy to clean: Smooth surfaces, removable basket
  • High efficiency: Maximum honey yield thanks to optimal drainage
  • Space-saving: Compact design for workshops, garages, or extraction rooms

Conclusion on the Imgut ECO 3W Honey Extractor (manual tabletop model):

The Imgut® ECO 3-frame tabletop Honey Extractor is the ideal choice for hobby and part-time beekeepers looking for a compact, robust, and high-performance Honey Extractor.

Order now and optimize your Honey Harvest!

Holtermann’s Practical Tip: For particularly smooth operation, we recommend preheating the extractor slightly before starting by briefly rinsing it with warm water. This allows the frames to spin more evenly, and the honey drains faster.


in stock
199,00 EUR incl. 19% tax excl. Shipping costs
Order Quantity allowed in 1-steps!
Add to cart
PayPal Express Checkout

Technical Details for the Imgut® ECO 3-Frame Honey Extractor – Tabletop Model, Hand-Cranked, Tangential

General

Item No.:

5409

Product Name:

Imgut® ECO 3 Honey Extractor – Tabletop Model, Top-Hand Drive, Tangential

Product Type:

Manual Honey Extractor

Brand:

Imgut® ECO

Drive type:

Top-hand drive

Control:

Manual control

Basket:

Tangential round-mesh basket

Ball bearings:

Yes (8 mm diameter)

Center shaft:

No

Floor-level outlet:

Yes

Special features:

Argon-plasma welded, steel gear drive

Capacity

Number of honeycombs:

3

Max. frame height:

up to 245 mm

Suitable dimensions:
  • Standard size
  • Zander
  • Langstroth

Suitable for bee colonies:

up to approx. 10–15 colonies (depending on nectar flow and honey extraction frequency)

What’s Included

What’s Included:
  • Honey extractor
  • Squeeze valve, Item No. 5841
  • 2x lid halves, Item No. 5102
  • Top drive
  • Basket
  • Crank handle
  • Centrifugal ball, Part No. 5528
  • Screws / Nuts

Material

Material of the kettle:

Stainless Steel®

Basket material:

Stainless Steel®

Material of the squeeze valve:

Plastic

Dimensions

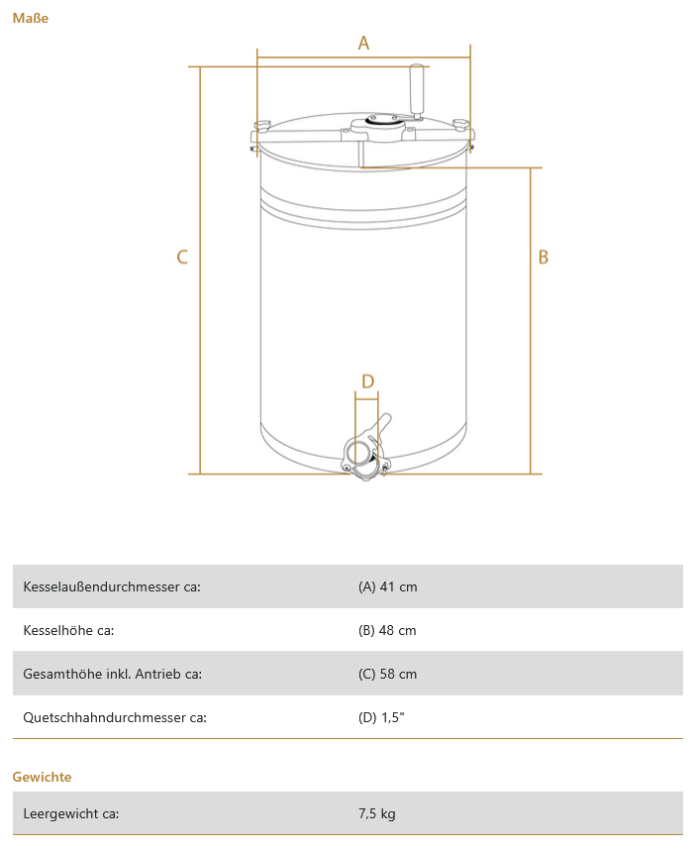

Technische Zeichnung einer Honigschleuder mit Ober-Handantrieb

Boiler diameter approx.:

(A) 41 cm

Boiler height approx.:

(B) 48 cm

Total height, including drive, approx.:

(C) 58 cm

Pinch valve diameter approx.:

(D) 1.5 inches

Boiler wall thickness, approx.:

2.5 mm

Wire thickness of grid bars, approx.:

6/8 mm

Dimensions (L x W x H) approx.:

41 x 41 x 58 cm

Weight

Weight approx.:

7.5 kg

Yes, the tangential basket is suitable for all standard sizes up to 245 mm in height.

Yes, the manual drive operates smoothly and is particularly well-suited for beginners.

Yes, this allows for virtually loss-free honey flow.

No, the stainless steel surfaces and the removable basket make cleaning very easy.

No, it is intended exclusively for indoor use.

Quick Start Guide for the Imgut® ECO 3 W Extractor

1. Setting Up

  • Place the extractor on a level, dry surface.
  • Place the lid halves on top and slide them under the crossbar.

2. Prepare for Assembly

  • Attach the crank handle to the drive using the screw and lock nut.
  • Check that all screws and nuts are secure.

3. Before spinning

4. Spin cycle

  • Close the lid.
  • Turn the crank clockwise, gradually increasing the speed.
  • After emptying, rotate the frames 180° and spin again.

5. After Spinning

  • Clean and dry the basket/bowl.
  • Lubricate the bottom bearing with food-grade grease.
  • Store the centrifuge in a dry place.
