Imgut<sup>®</sup> ECO 2 W Honey Extractor table model

Main page / Honey Extractors / Honey Extractors with tangential extractor basket / Imgut® ECO 2 W Honey Extractor table model

5400

Imgut^® ECO 2 W Honey Extractor table model

Top manual drive with gear crank
Container with bottom-level outlet
Tangential round mesh basket suitable for 2 combs up to seize of 330 mm. e.g:
- - German Standard size (DN)
- - Zander
- - Langstroth
- - Dadant US
- - Dadant leaf (BLATT)
- - Kuntzsch-High

in stock

199,00 EUR incl. 19% tax excl. Shipping costs

Product information
Technical data

Flexibility without the frills

Suitable for two honeycombs of up to 330 mm High size, this honey extractor with top manual drive was designed as a table model for tangential operation. It allows you a flexible use and an easy and comfortable harvest of honey. The bottom-level spout with plastic squeeze tap ensures that you can transfer the honey through the spout almost completely and without much effort.

German workmanship from the region of the Lüneburger Heide in the North of Germany

These solid Honey Extractors are manufactured regionally and Made in Germany.To ensure that you receive a long-lasting, high-quality product, we use stainless steel for the extractor bowl, basket and traverse.
We are allowed to use the Edelstahl Rostfrei^® seal confirming its quality.

General information

Item no:	5400
Designation:	Imgut^® ECO 2 W Honey Extractor table model
Article type:	Honey extractor

Drive unit

Type:	Overhead manual drive
Special feature:	on traverse with steel gear crank

Centrifugal basket

Basket type:	Tangential basket
Honeycomb number & dimensions approx:	suitable for 2 honeycombs up to 330 mm high, e.g: standard size Zander Langstroth Dadant US Dadant leaf Kuntzsch-High
Material:	Stainless steel
Wire thickness round bars approx:	Ø 6/8
Special feature:	ball bearing, ball diameter approx: 8 mm

Centrifugal bowl

material:	Stainless steel
Material thickness:	2.5 mm
Processing:	Argon plasma-welded

Pinch tap

Material:

Plastic

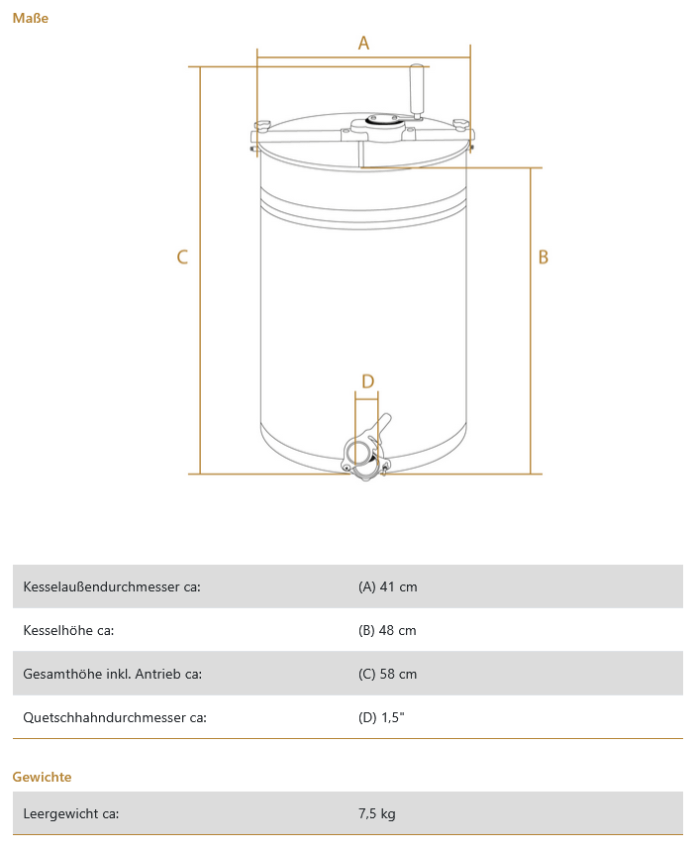

Dimensions

Outer diameter of kettle approx:	(A) 41 cm
Boiler height approx:	(B) 48 cm
Total height incl. drive approx:	(C) 58 cm
Pinch tap diameter approx:	(D) 1,5"

Weights

Empty weight approx:

7.5 kg
