38962

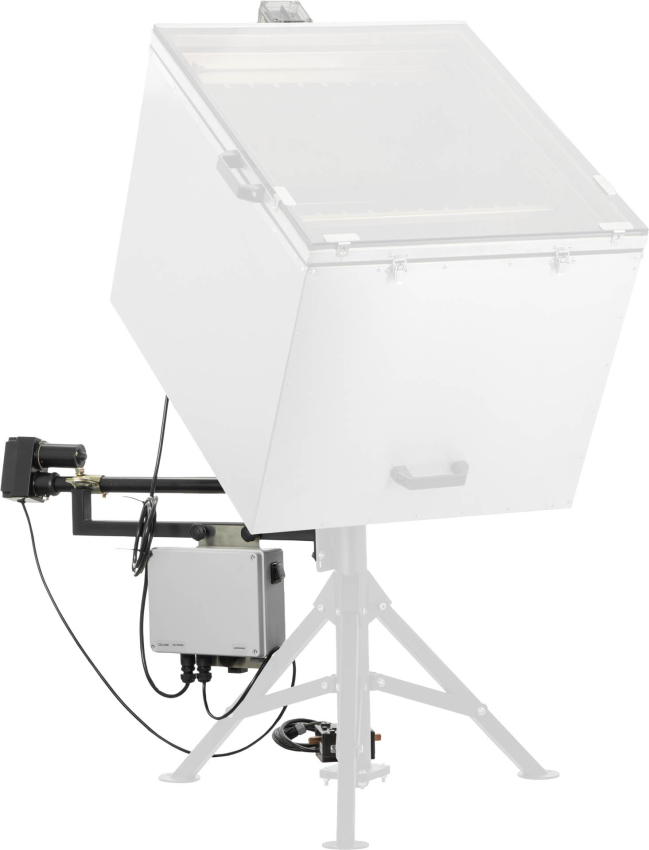

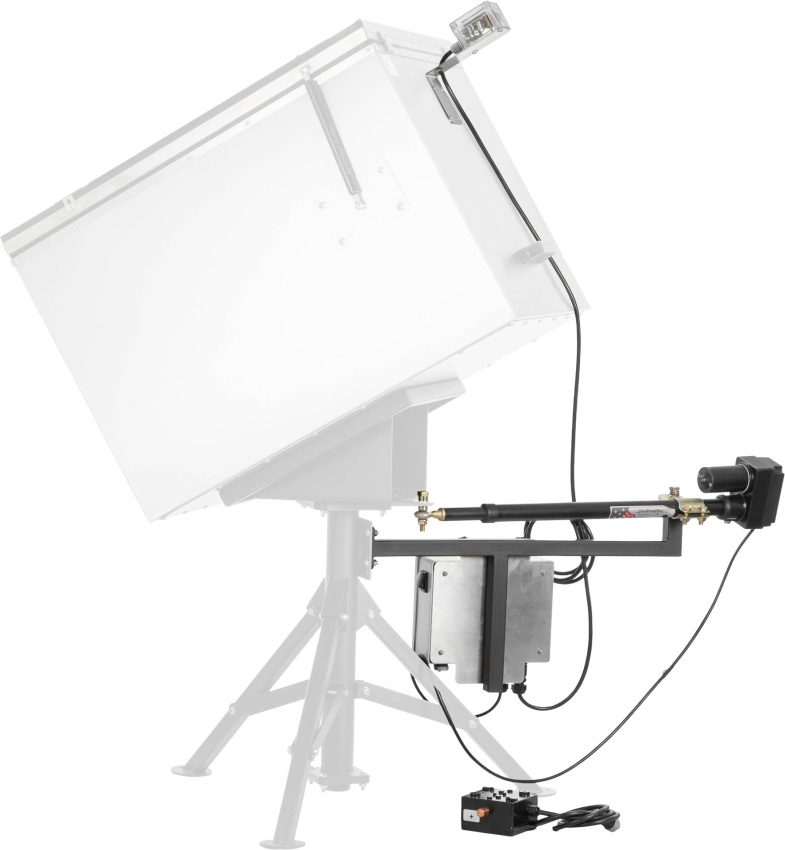

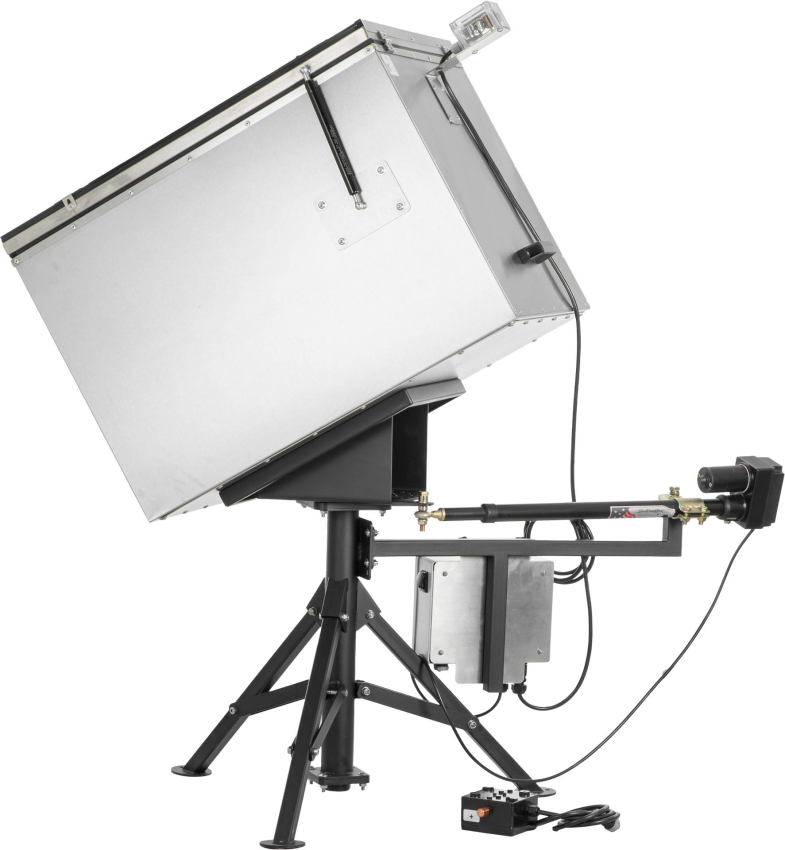

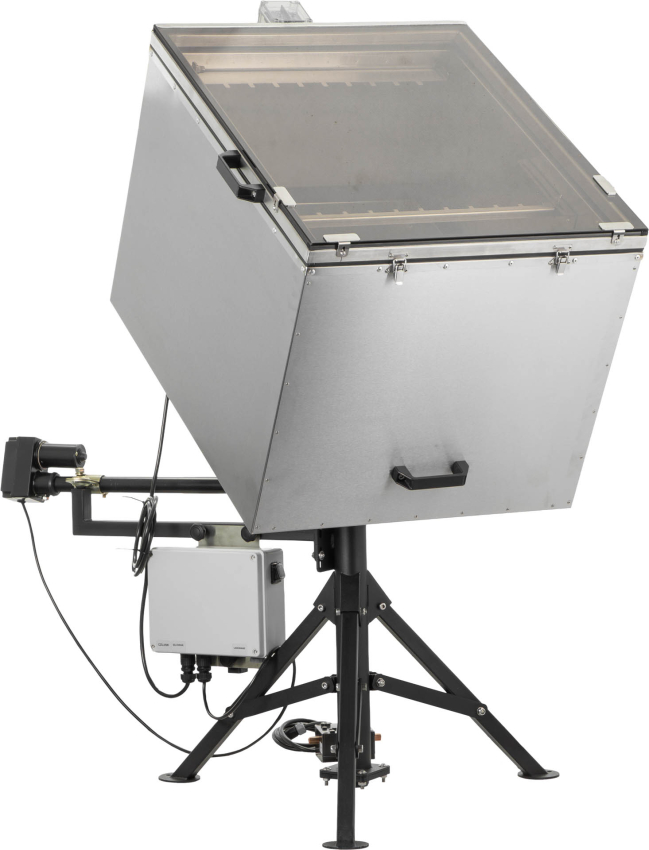

Smalto® V sun follower module

Product description

The Smalto® V sun follower module is the intelligent addition to the Smalto V Solar Wax Extractors. The module automatically aligns the melter with the sun and thus maximizes wax melting efficiency without the need for an external power source thanks to the 12 V battery.

Special features of the Smalto V sun tracking module

  • Automatic sun tracking: Intelligent position sensor continuously corrects the alignment of the Smalto V over the course of the day
  • Precision electric drive: servomotor with linear drive ensures smooth and controlled rotation
  • Independent power supply: Dedicated 12 V battery with 18 Ah for self-sufficient operation without mains power
  • Weatherproof battery box: Removable protective box with IP65 for safe outdoor use and easy transportation

Advantages of the sun follower module for the Smalto V

  • Maximum wax yield: The Smalto V makes efficient use of every hour of sunlight thanks to its permanent optimal alignment to the sun
  • No manual adjustment: The automatic control saves time and labor and ensures a constant melting process
  • Constant heating: Uniform temperature control supports clean wax separation and high wax quality
  • Ready for immediate use: All components such as sensor, drive, battery and charging adapter are included in the set
  • Durable for outdoor use: Robust materials such as powder-coated steel and plastic are designed for long-term outdoor use

Conclusion of the Smalto V sun follower module

The Smalto V sun follower moduleturns the Smalto V Solar Wax Extractors into an almost self-operating system with significantly higher wax melting efficiency. Ideal for all beekeepers who want to use solar energy consistently and save their working time.

Discover the Smalto V solar follower module now and get the most out of your Solar Wax Extractors.

Holtermann practical tip: Place the Smalto V Solar Wax Extractors with solar follower moduleon a firm, slightly raised surface so that the sensor can "see into the sky" as freely as possible. Check the battery charge at the start of the season to ensure that the sun tracker works reliably from the first day of sunshine.



in stock
686,00 EUR incl. 19% tax excl. Shipping costs
Order Quantity allowed in 1-steps!
Add to cart
PayPal Express Checkout

Product data Smalto® V sun follower module

Item no.
  • 38962

Designation

 Smalto® sun follower module

Article type

Solar follower module for Solar Wax Extractors Smalto® V

General

Suitable for:

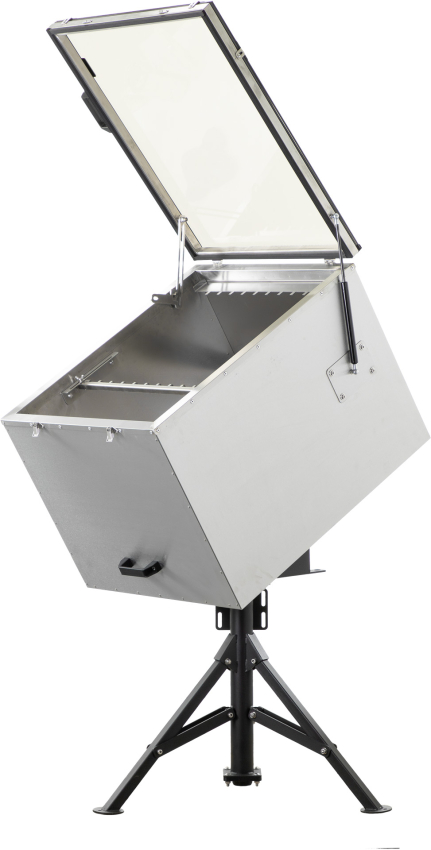

Smalto V Solar Wax Extractors

Function:

Automatic sun tracking for maximum wax melting efficiency

Application area:

Outdoor use, suitable for beekeeping operation

Drive:

Electric drive with servomotor and linear drive

Sensors:

Intelligent position sensor for continuous alignment to the sun

Battery housing:

Removable battery protection box IP65

Tools required for installation:

Allen key 5 mm, width across flats 13

Installation instructions for the fuses:

Insert two fuses into the protective box before commissioning, unscrew caps, insert fuses, screw caps back on.

Installation instructions:

A firm, solid surface is recommended, e.g. a stepping plate.

Capacity

Supply and capacity:

12 V battery, capacity 18 Ah

Scope of delivery

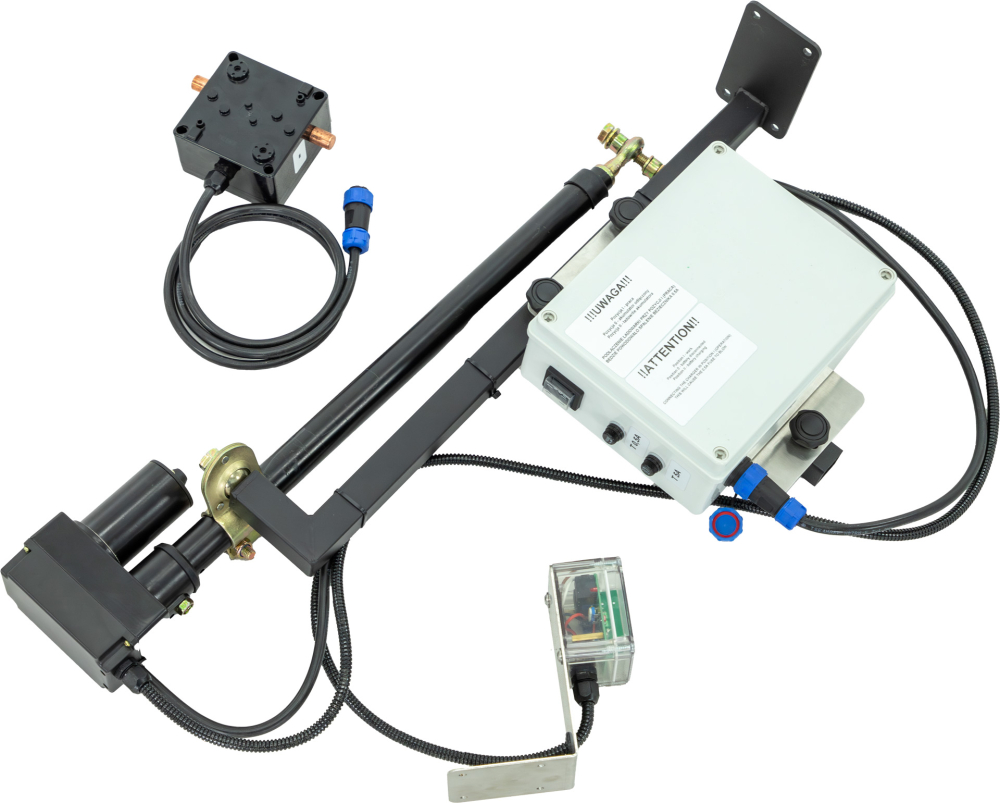

Scope of delivery:
  • Control module with drive
  • Sensor
  • 12 V 18 Ah battery
  • Battery protection box
  • Battery charging adapter
  • Fuses
  • Mounting material

material

Module material:

Powder-coated steel and plastic

Color:

Black (drive), gray (battery protection box)

Weight approx.

Weight approx:

15 kg

FAQ about the Solar Wax Extractors Smalto V sun follower module

The module controls the automatic sun tracking of the Smalto V Solar Wax Extractors so that the melter is optimally aligned with the sun throughout the day, allowing more wax to be melted.

This solar follower module is specially designed for the Smalto V Solar Wax Extractors. The manufacturer-specific control systems should be used for other Solar Wax Extractors models.

No. The unit is powered by a 12 V battery with 18 Ah in the battery protection box and is therefore independent of external power sources. This means that the system remains self-sufficient and flexible in use.

Normally not. The position sensor automatically corrects the alignment so that the Solar Wax Extractors Smalto V automatically tracks the position of the sun. Manual adjustment is only necessary in exceptional cases.

The system is designed for stable, low-maintenance outdoor operation. It is sufficient to check the mechanical parts occasionally, keep the connections clean and charge the battery regularly to ensure that the sun tracking system functions reliably.

Quick guide - Smalto V sun follower module

1. prepare the installation site

  • Placethe Solar Wax Extractors Smalto V on a level, solid surface
  • Ensure that the area is as free of shade as possible

2. position the battery protection box

  • Place thebattery box next to or underneath the Solar Wax Extractors
  • Lay the cable so that there are no tripping hazards

3. insert the fuses

  • Unscrew the fuse holder caps on the left-hand side of the box
  • Remove thefuses from the packaging and insert them
  • Screw the caps back on tightly

4. install and connect the module

  • Attach the sun follower module with drive unit to the Smalto V according to the instructions
  • Position thesensor so that it has a clear view of the sky
  • Make thecable connections between the drive unit, sensor and battery according to the labeling

5. commissioning

  • Fully charge the battery with the battery charging adapter if required
  • Switch on the system, check the function of the sun tracking system
  • Observe whether the Solar Wax Extractors slowly tracks the position of the sun

6. after use

  • Switch off the system during longer breaks
  • Recharge the battery regularly and keep the connections dry
  • Store the module and battery box in a dry place if it is not to be left outdoors for a longer period of time

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Independent modifications may impair the functionality of the appliance and, if not carried out correctly, may result in serious damage to persons and property. The warranty is generally void if unauthorized modifications are made.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest
Read the supplied operating instructions before use.
Blaues Icon mit schematischer Zeichnung von Handschuhen
Wear heat-insulating hand protection.
