Kenian Top Bar Hive

The top bar hive is also known as the Kenyan Top Bar Hive (KTBH) or top support hive. Instead of frames and center walls, movable honeycomb strips are used for natural construction. As with the Kiel mating box, sloping walls prevent the combs from being blocked. Made from untreated solid wood up to 28 mm thick, the Kenian Top Bar Hives from Bieno®Natura are knot-free, solidly glued and screwed.

They are supplied with honeycomb slats and spacers. Base with stainless steel ventilation grille, varroa diaper that can be pulled out to the rear, rear working flap and flight holes with mouse protection. Solid wooden lid plus additional sheet metal lid as weather protection.

All hives and hive parts are in stock and available at short notice.

The hives and hive parts are delivered without a coat of paint
You can find suitable paints here.


Kenian Top Bar Hive

Art-Nr. 2670

consisting of:

  • Floor with ventilation and varroa grid
  • two Varroa diapers
  • Rear inspection and working hatch
  • Body with 26 comb strips, two separators for partitioning or colony division and spacer strips (spacers)
  • two flight holes with flight hole closure and mouse slider
  • Wooden lid
  • Sheet metal lid in one piece
  • External dimensions approx. 112 x 58 cm, height 43 cm,
    Weight approx. 23 kg

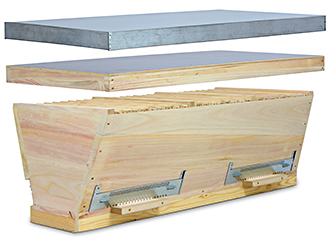

Top Bar Hive, Frontansicht, Deckel und Blechdeckel schwebend

consisting of:

  • Floor with ventilation and varroa grid
  • two Varroa diapers
  • Rear inspection and working hatch
  • Body with 26 comb bars, two separators with adapters and spacers
  • Two flight holes with flight hole closure and mouse slider
  • Special feature: There is a viewing window measuring 82.5 x 29 cm on the back. This is protected by a flap with insulation board insulation. This can be opened downwards using 3 hinges
  • Wooden lid
  • Sheet metal lid in one piece
  • External dimensions approx. 112 x 58 cm, height 43 cm,
    Weight approx. 23 kg
Top Bar Hive mit Fenster, Rückansicht, Fensterklappe offen, Deckel und Blechdeckel schwebend, beide Bodenschieber ausgezogen

Is slipped over the outer lid
galvanized, straight fit
Inner support surface: approx. 111 x 57 cm
Height 6 cm, weight approx. 4 kg

Top Bar Hive Blechdeckel, Kantenansicht

consisting of:

  • Floor with ventilation and varroa grids
  • Varroa diapers
  • Rear inspection and working hatch
  • Body with 13 honeycomb strips and spacers
  • Flight hole with closure and mouse slider
  • Two hinged handles
  • Wooden lid
  • Sheet metal lid in one piece
  • External dimensions approx. 58 x 58 cm, height 43 cm,
    weight approx. 14 kg

Can also be used as a Nucleus Hives

Mini Top Bar Hive, Kantenansicht, Holzdeckel und Blechdeckel schwebend

Is slipped over the outer lid
galvanized, straight fit
Inner dimensions: 59 x 59 cm
Height 6 cm, weight approx. 2 kg

Mini Top Bar Hive Blechdeckel, Kantenansicht

suitable for Top Bar and Mini Top Bar Kenian Top Bar Hive
Length: 517 mm, width 27 mm
Thickness 11 mm, ears stepped down to 7 mm

Top Bar Hive Wabenträger, Frontansicht

Suitable for Top Bar and Mini Top Bar Kenian Top Bar Hive
Length: 517 mm, width: 12 mm
Thickness: 7 mm

Top Bar Hive Abstandsleiste Spacer, Frontansicht

Length 517 mm, width 25 mm
Carrying ears stepped to 10 mm

ab 1 units per 2,49 EUR
ab 50 units per 2,24 EUR
Bieno® Schiffsrumpfleiste Top Bar Hive, Frontansicht

for partitioning and colony division
Length of upper beam 517 mm,
Length of partition 487 - 198 mm,
total height 347 mm

Top Bar Hive Trennschied, Frontansicht

Galvanized, enclosed in a wooden frame
Upper beam 517 x 18 x 23 mm
Partition plate height 327 mm, 14 mm thick

Top Bar Hive Metall Absperrgitter, Frontansicht

made of wood, for partitioning off the window area in the Kenian Top Bar Hive with window, Art. 2672
Length: 16.5 cm, width: 2.5 cm, thickness: 1.1 cm
Set of 2 pieces

Adapter-Set für Top Bar Hive Trennschied und Metall Absperrgitter, Kantenansicht, offene Seite unten

Solidly glued and stapled.
Outer dimensions top approx. 460 mm
Outer dimension bottom approx. 200 mm
Upper beam 517 mm, height 302 mm

Before use, seal with vat lacquer Art. 2127 or ApiDana® feeder frame lacquer Art. 21275

Top Bar Hive Futtertasche, Frontansicht

for dividing or narrowing in the Kenian Top Bar Hive using a modular plug-in system. A partition, ventilation grille, Queen Excluders, feed bag, Bee Escapes or empty frame can be inserted and removed without disturbing the colony. When used in the Kenian Top Bar Hive with window, there is a gap to the window side, please close this with some foam or similar

Approx. dimensions: length of top bar 517 mm, body 202-465 mm, total height 336 mm, width 35 mm

consisting of

  • one basic module
  • one divider
  • one ventilation grille
  • one Queen Excluders
  • one feeding bag
  • one Bee Escapes
  • an empty frame

© Utility model registered with the DPMA and protected by law

Top Bar Hive verschiebbares Einstecksystem, Frontansicht, Gruppenbild aller Teile freigestellt

The basic module forms the basis for the sliding plug-in system. All individual parts can be inserted and removed here

Approx. dimensions: length of upper beam 517 mm, body 202-465 mm, total height 336 mm, width 35 mm

© Utility model registered with the DPMA and protected by law

Top Bar Hive Einstecksystem Grundmodul, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Trennschied, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Lüftungsgitter, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Absperrgitter, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Futtertasche, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Bienenflucht, Frontansicht

for use in the Kenian Top Bar Hive plug-in system basic module
External dimensions approx. 110-360 x 320 mm

Top Bar Hive Einstecksystem Leerrahmen, Frontansicht

Did you already know?
We only use untreated solid wood with all its natural properties and characteristics. The weather in the form of sun, rain and cold as well as fluctuating humidity affects all dried and sawn wood if it is not protected.

Our tip:
Paint the hives up to three times, roughening the surface with sandpaper between coats. Then refresh periodically depending on the condition and personal preference.

After the bees have moved in, the hives develop their own room climate. The temperature and humidity inside the hive differs from the climate outside. As a result, condensation can form under the lid, mold can form and the hive parts can crack. For better air circulation, we recommend raising the hive on Bee Hive Stands and removing the Sticky Boards after the Varroa check.
