Erlangen Wooden Hives

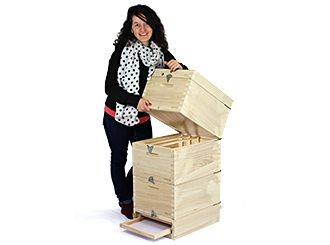

Erlanger Holzbeute Suitable for 9 frames Zander short ear of
452 x 220 mm. Manufactured from 27 mm thick solid wood and fitted with our galvanized corner joints. The hive parts have a rebate and are equipped with the typical Erlanger fittings for this hive, such as the tilting bracket and locking disk, in stainless steel.

All hive parts are knot-free, solidly glued and screwed, the external dimensions are 49 x 38.5 cm.

All hives and hive parts are in stock and available at short notice.

The hives and hive parts are delivered without paint and frames
Suitable frames can be found here, suitable paints can be found here.


consisting of

  • a Varroa raised floor with stainless steel
    ventilation grille, mouse wedge and Sticky Boards
  • three full frames for 9 frames
    Zander short ear 452 x 220 mm
  • one insulated wooden lid
    height 89 cm, weight approx. 14 kg
Erlanger Beute mit Varroa Hochboden, Kantenansicht, Zargen und Deckel schwebend

consisting of:

  • a Vario flat bottom with stainless steel
    ventilation grille, mouse wedge and Sticky Boards
  • three full frames for 9 frames
    Zander short ear 452 x 220 mm
  • one insulated wooden lid
    Height 84.5 cm, weight approx. 12.5 kg
Erlanger Beute mit Vario Flachboden, Kantenansicht, Zargen und Deckel schwebend

  • Stainless steel ventilation grilles in wooden frames
    and Sticky Boards as slide-in cassette
    Can be used variably at the top or bottom
  • Flight hole closing wedge
  • Closure flaps at the back
  • External dimensions 51 x 38.5 cm, height 13.5 cm
    Weight approx. 3 kg
Erlanger Varroa Hochboden, Kantenansicht

2-part, consisting of a large pollen comb with 5 mm Ø holes and a pollen collecting frame with stainless steel wire mesh. The pollen comb is inserted from the front through the entrance hole. Appropriate guide rails are supplied for this, please fix these to the floor. The collecting frame is pushed in and out from behind
Size of pollen comb: approx. 460 x 330 x 19 mm
Size of collecting frame: approx. 435 x 330 x 19 mm

Erlanger Einschub-Pollenfalle Hochboden, Kantenansicht, Pollenkamm schwebend, Schienen und Schrauben liegend daneben

  • suitable for: Erlanger Varroa raised floor
  • 2-part: consisting of an aluminum ventilation grille in a wooden frame and a Sticky Boards
  • Versatile use: for collecting pollen, as a waste tray for Varroa control or winter sealing
  • easy handling: with small handle opening for easy insertion and removal

Mehr erfahren…

Erlanger Varroa raised floor slide-in cassette

  • Stainless steel ventilation and varroa grids
  • Sticky Boards for Varroa control
  • Turning wedge with two cut-outs
  • External dimensions 49 x 38.5 cm, height 9.5 cm,
    Weight approx. 2 kg
Erlanger Vario Flachboden, Kantenansicht, Fluglochkeil schwebend davor

against gamekeeping, dimensions approx: 407 x 326 mm

Erlanger Bausperre für Vario Flachboden, Kantenansicht

for varroa control
Dimensions: 417 x 327 mm

Erlanger Bodenschieber für Vario Flachboden, Kantenansicht

Erlangen half frame

Art-Nr. 2709

for Zander short ear frames
from 452 x 110 mm
Height 12 cm, weight approx. 1.5 kg

Erlanger Halbzarge, Kantenansicht

Erlangen flat frame

Art-Nr. 2710

for Zander short ear frames
from 452 x 159 mm
Height 17 cm, weight approx. 2 kg

Erlanger Flachzarge, Kantenansicht

Erlanger whole frame

Art-Nr. 2708

for Zander short ear frames
from 452 x 220 mm
Height 23 cm, weight approx. 3 kg

Erlanger Ganzzarge, Kantenansicht

Erlanger ZaDant frame

Art-Nr. 2711

for Zander short ear frames
from 452 x 285 mm
Height 29.5 cm, weight approx. 4 kg

Erlanger ZaDant Zarge, Kantenansicht

Erlangen display frame

Art-Nr. 2712

for Zander short ear frames
of 452 x 220 mm, with display window,
glass pane and closing plate.
Height 23 cm, weight approx. 3.5 kg

Erlanger Schauzarge, Kantenansicht, Fensterabdeckung vorgestellt

for 9 frames Zander short ear of 452 x 220 mm. The highlight is the four hinged side panels, behind each of which there is an acrylic pane for an unobstructed view of the bee colony.

Erlanger Rundum-Schauzarge, Kantenansicht mit offenen Seitenwänden

each consisting of an acrylic panel measuring 392 x 133 mm and 272 x 133 mm

Ersatz-Scheiben-Set Erlanger Rundum-Schauzarge, Frontansicht

Erlangen false floor

Art-Nr. 2713

consisting of wooden frame with bung plate
and diamond-shaped Bee Escapes
Height 3.5 cm, weight approx. 1 kg

Erlanger Zwischenboden, Kantenansicht, Flucht schwebend

Consisting of double wooden frame with entrance hole, removable false bottom panel with two bung holes, Crown Boards and Inner Covers and round Bee Escapes. Can therefore be used in 2 ways as an escape partition or as a closed false floor

Fundgruben Komfort Fluchtschied Erlanger, Kantenansicht, Einzelteile schwebend

Consisting of double wooden frame with flight hole, removable false bottom panel with two bung holes, Crown Boards and Inner Covers, wire frame with ventilation grille. Thus 6-fold usable: escape partition, intermediate floor with trunk contact, closed intermediate floor, upper ventilator, upper flight hole and feeding grid

© Design registered with the DPMA and protected by law

Erlanger Komfort Zwischenboden, Kantenansicht, Einzelteile schwebend

is used instead of the bunghole plate in the wooden frame and thus allows a clear view into the colony
Dimensions: approx. 30 x 42.4 cm

Erlanger Komfort Plex Sichtplatte, Kantenansicht

for approx. 6.5 liters of liquid feed with side access
and stable aluminum perforated bracket.
Height 9.5 cm, weight approx. 2 kg

We recommend painting the inside with vat paint Art. 2127 or ApiDana® feed frame paint Art. 21275

Erlanger Futterzarge mit Seitenaufstieg, Kantenansicht

as a replacement

Erlanger Alu-Lochwinkel, Frontansicht

for approx. 6.5 liters of liquid feed with central access in the central dome, external dimensions 49 x 38.5 cm, height 10.5 cm

Before use, paint the interior including the central dome with vat paint Art. 2127 or ApiDana® feed frame paint Art. 21275

Erlanger Futterzarge nach Bruder Adam, Kantenansicht, Dom schwebend

Erlangen wooden lid

Art-Nr. 2718

with insulation boards Insulation
Height 6 cm, weight approx. 1.5 kg

Erlanger Holzdeckel, Kantenansicht

Erlangen tin lid

Art-Nr. 2719

Is slipped over the outer lid
galvanized, conical fit
Inner support surface: 50 x 40 cm
Height 6 cm, weight approx. 1.5 kg

Erlanger Blechdeckel, Kantenansicht

Is slipped over the outer lid
Inner support surface: 50 x 40 cm
Height 6 cm, weight approx. 2 kg

Erlanger Edelstahldeckel, Kantenansicht

Solid and knot-free wood. With galvanized sheet metal cover and all-round roof overhang. Special feature: The sheet metal cover is made in one piece and is not cut through by a central seam. External dimensions 47 x 26 cm, height 13 cm, weight approx. 4 kg

Erlanger Satteldach mit Blechbeschlag, Kantenansicht

Solid, knot-free wood and with all-round roof overhang with weatherproof copper fittings and ridge strip. External dimensions
47 x 26 cm, height 14 cm, weight approx. 4 kg

Erlanger Satteldach mit Kupferbeschlag, Kantenansicht

For placing on the frames
Size 328 x 452 mm

Erlanger Metall Absperrgitter verzinkt, Draufsicht auf eine Ecke

For placing on the frames
Stainless steel 1.4016, size 328 x 452 mm

Erlanger Niro Absperrgitter, Draufsicht auf eine Ecke

For placing on the frames
Size 328 x 452 mm, 3 mm thick

Erlanger Kunststoff Rundgitter, Draufsicht auf eine Ecke

for placing on the frames,
0.4 mm thick and inherently stable
Size 329 x 453 mm

Erlanger Abdeck-Fix, Draufsicht auf eine Ecke

Breathable and diffusion-open cover with lotus effect prevents mold growth and helps with temperature loss. The textured, rough side belongs at the bottom and allows moisture to escape upwards from the hive, the smooth side belongs at the top and is water-repellent. We recommend placing a piece of gauze Art. 27161 underneath to prevent the bees from cementing or building it up
Size 329 x 453 mm, material thickness approx. 0.5 mm

Erlanger Lotus-Abdeckung, Draufsicht von schräg oben auf eine Ecke

For placing on the frames
Size approx. 485 x 355 mm

Erlanger Abdeckgaze, 5er Pack, Draufsicht auf eine Ecke

Erlangen propolis grid

Art-Nr. 2717

328 x 452 mm

ab 1 units per 7,60 EUR
ab 10 units per 6,90 EUR
Erlanger Propolisgitter, Draufsicht auf eine Ecke

Did you already know?
We only use untreated solid wood with all its natural properties and characteristics. The weather in the form of sun, rain and cold as well as fluctuating humidity affects all dried and sawn wood if it is not protected.

Our tip:
Paint the hives up to three times, roughening the surface with sandpaper between coats. Then refresh periodically depending on the condition and personal preference.

After the bees have moved in, the hives develop their own room climate. The temperature and humidity inside the hive differs from the climate outside. As a result, condensation can form under the lid, mold can form and the hive parts can crack. For better air circulation, we recommend raising the hive on Bee Hive Stands and removing the Sticky Boards after the Varroa check.
