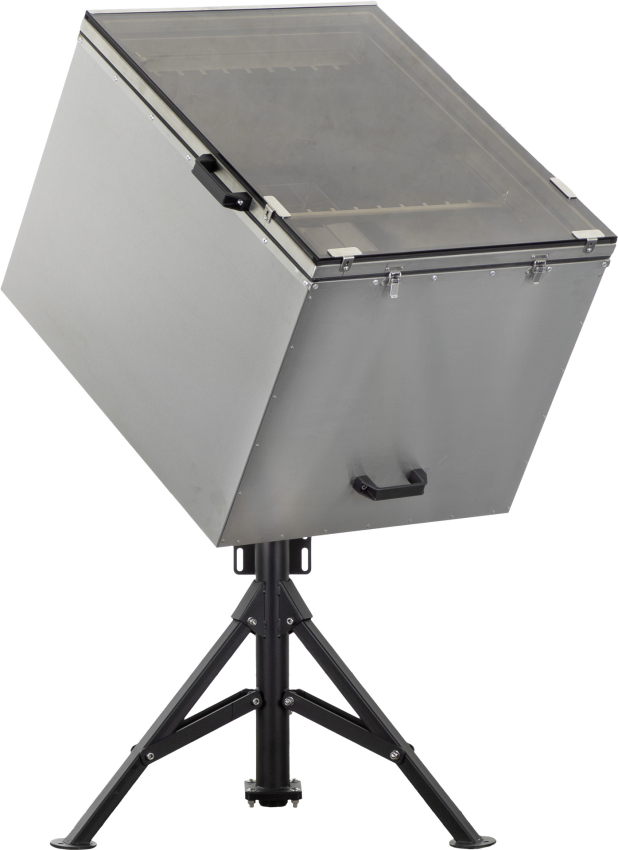

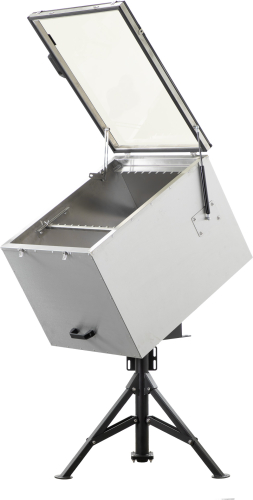

Smalto® V Solar Wax Extractors

Product description

The Smalto V Solar Wax Extractors is a solar-powered wax melter made of stainless steel for up to 10 frames. It combinesefficient heat utilization, high hygiene and convenient operation for ambitious beekeepers.

Special features of the Smalto V

  • Double jacket insulated with mineral wool with approx. 35 mm insulation thickness for minimal heat loss
  • 6 mm thick smoked glass with watertight attachment for a strong greenhouse effect and protection against dirt
  • Airtight sealable melting chamber with tension locks similar to a food storage tin
  • Pivoting, lockable base frame with adjustable angle of inclination for optimum alignment to the sun
  • Adjustable frame holder for different hive sizes and frame widths

Advantages for beekeepers

  • Saves time in the apiary by melting 10 combs at the same time
  • Clean, pure wax thanks to stainless steel body and stainless steel wax tray (approx. 5 l)
  • High energy efficiency thanks to insulated double casing and smoked glass, no power connection required
  • Ergonomic operation thanks to damped glass lid with gas pressure spring and safety lock
  • High flexibility with frame sizes such asDNM, ZA, Dadant US/Langstroth, Dadant Blatt and Simplex

Conclusion on the Smalto V Solar Wax Extractors

The Smalto V Solar Wax Extractors is the ideal solution for all those who want to process wax in an environmentally friendly, efficient and hygienic way, while relying on convenient handling and stable construction.

Discover the advantages of this professional Solar Wax Extractors now and optimize your wax processing.

Holtermann practical tip: Align the Solar Wax Extractors roughly to the south in the morning and adjust the angle of inclination and the swivel base during the course of the day to maximize irradiation. This will significantly shorten the melting times and produce particularly evenly melted wax.



in stock
1.699,00 EUR incl. 19% tax excl. Shipping costs
Order Quantity allowed in 1-steps!
Add to cart
PayPal Express Checkout

Product data Smalto® V Solar Wax Extractors made of stainless steel

Item no.
  • 3896

Designation

 Smalto® Solar Wax Extractors made of stainless steel

Article type

Solar Wax Extractors

capacity

Capacity:

up to 10 frames or combs at the same time

Suitable frame dimensions approx:

for the following frame formats:

  • German standard size (DN) up to approx. 223 mm height
  • Zander (ZA) up to approx. 285 mm height
  • Dadant US / Langstroth up to approx. 285 mm height
  • Dadant Blatt up to approx. 300 mm height
  • Simplex up to approx. 218 mm height
  • Frame width approx. 320-470 mm
  • Frame thickness up to approx. 37 mm

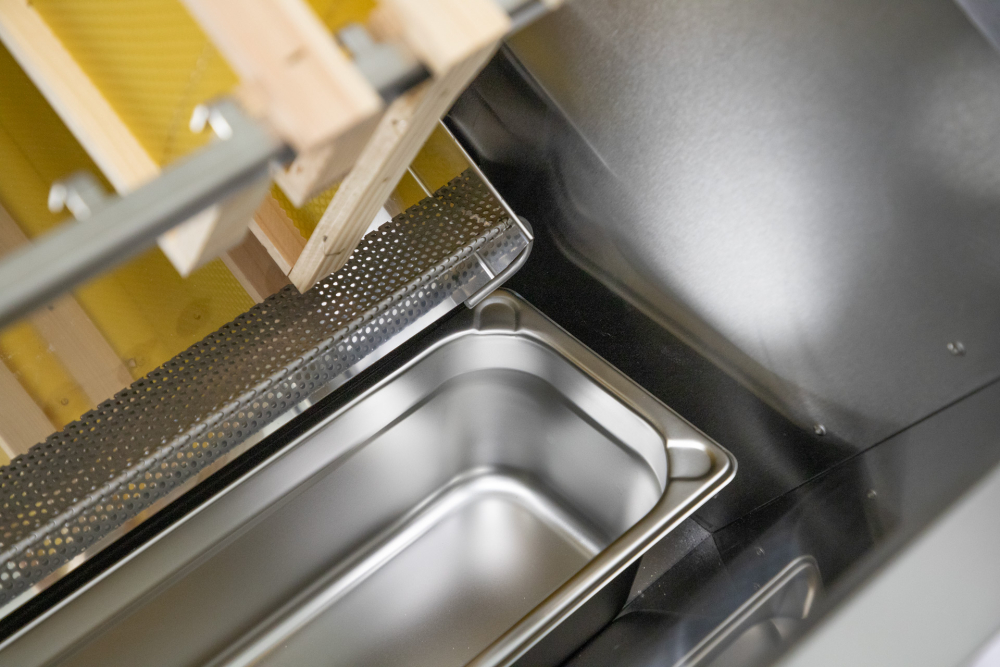

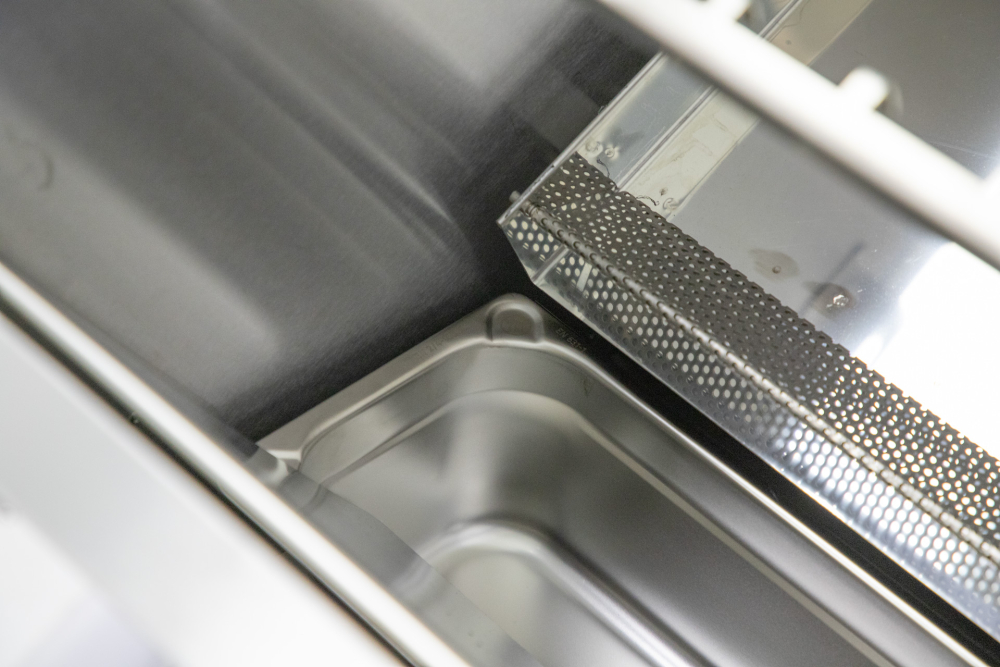

Wax tray capacity approx:

5 l

material

Body material:

Stainless steel

Tub material:

Stainless steel

Material lid approx:

Smoked glass, approx. 6 mm thick

Material handles:

Plastic

Base material:

Powder-coated steel

Base color:

black

Wax tray material:

Stainless steel

Dimensions

Total height with stand approx:

143 cm

External dimensions of body (L x W x H) approx:

77 x 62 x 58 cm

Interior body (L x W x H) approx:

56 x 69 x 50 cm

Inner tray (L x W) approx:

50 x 50 cm

Weight approx.

Net weight approx:

67 kg

Gross weight approx:

90 kg

Construction and operation

Insulation approx:

Double jacket insulated with mineral wool, insulation thickness approx. 35 mm

Closure of melting chamber:

Melting chamber can be closed airtight with two tension locks

Lid:

Cushioned glass lid with integrated drive for assisted opening

Safety interlock:

Safety locking bolt holds lid in open position

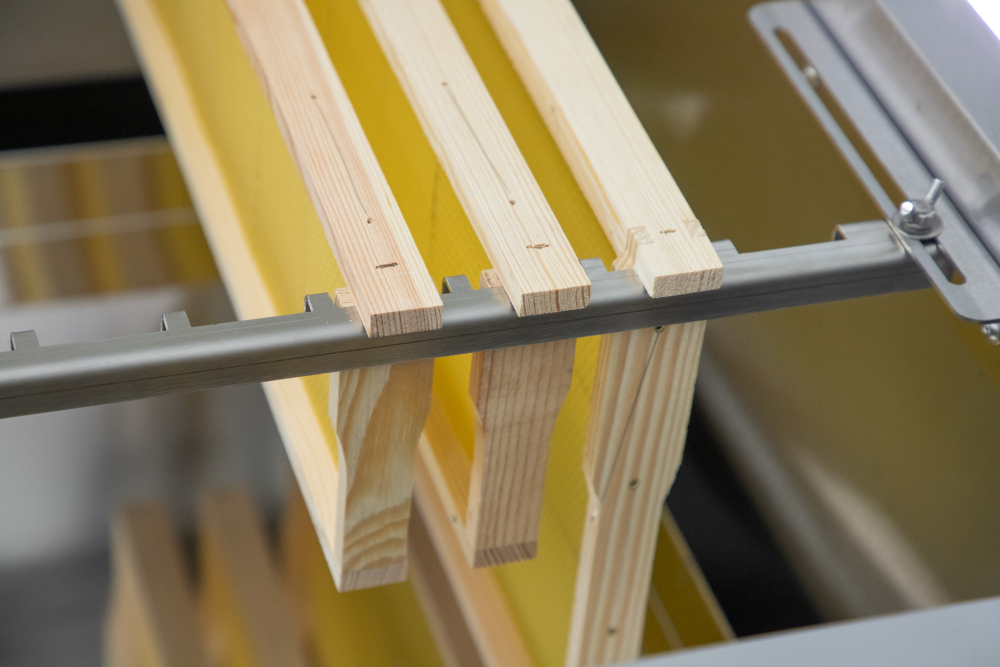

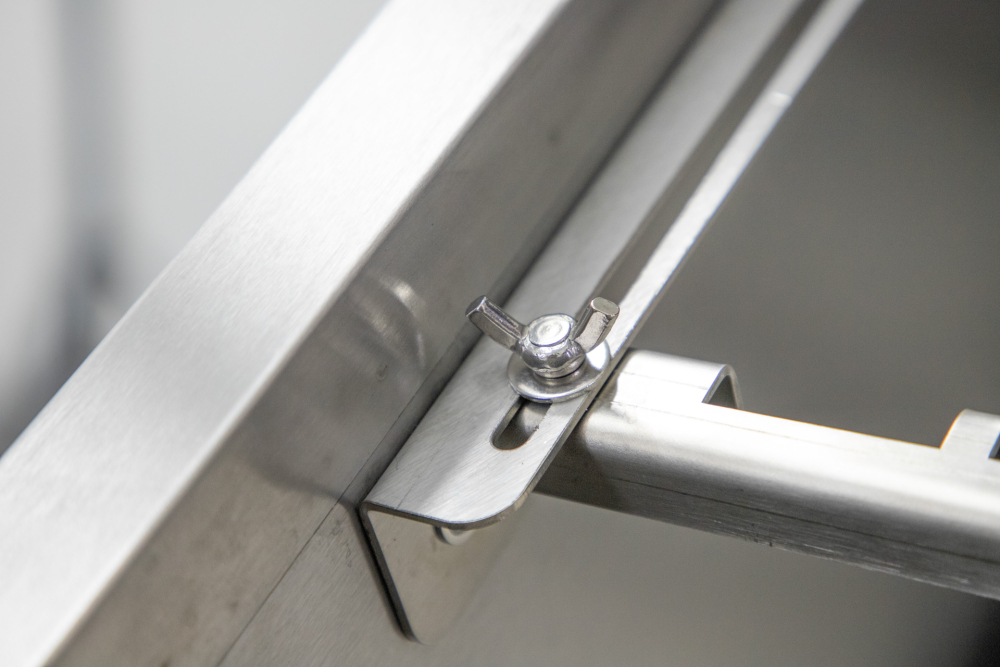

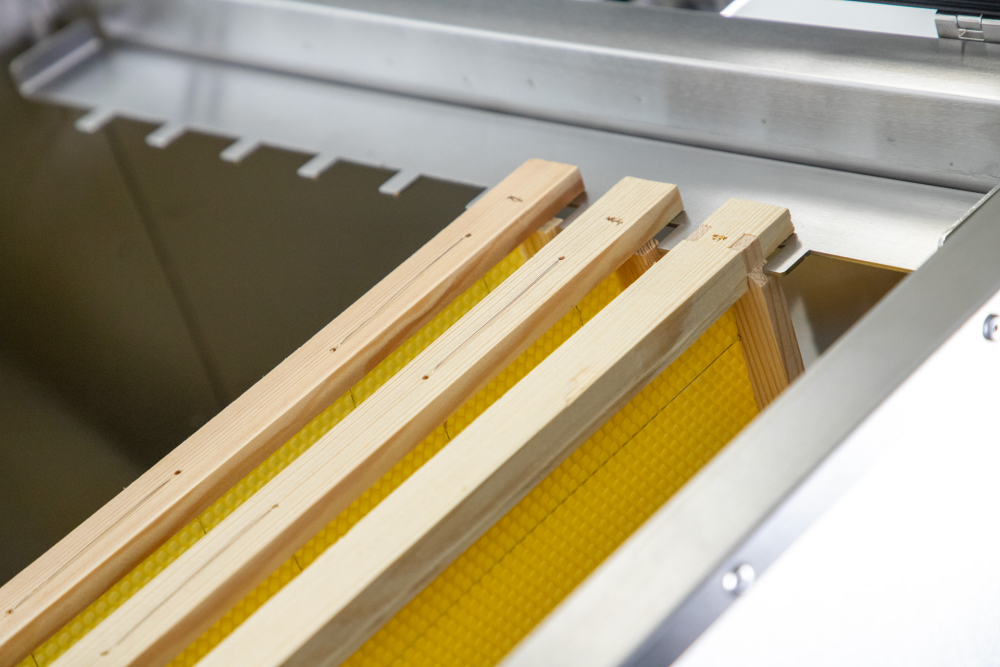

Bracket for frame:

adjustable holder for frames of different widths, heights and thicknesses

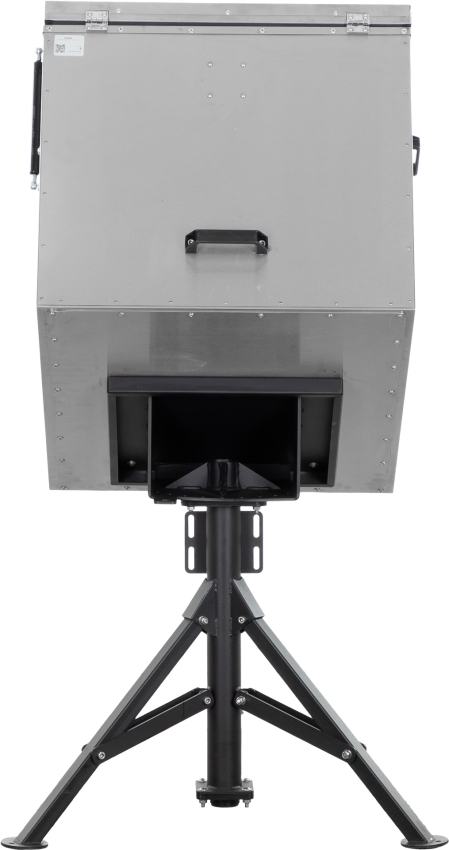

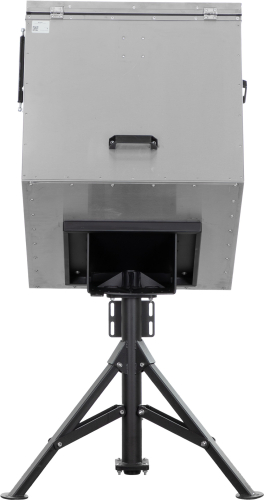

Base frame:

Underframe can be rotated and locked, vertical alignment infinitely adjustable

Alignment handle:

pivoting handle for alignment with the sun

Scope of delivery

Scope of delivery:

Body, cover, base

Tools required for assembly

Tools required for assembly:
(not included in the scope of delivery)
  • Allen key 5 mm
  • Allen key 2.5 mm

FAQ about Smalto V Solar Wax Extractors

The Smalto V Solar Wax Extractors accepts frames with widths of around 320 to 470 mm, heights of up to 300 mm and thicknesses of up to 37 mm. It is therefore suitable for common frame systems such as DN, Zander, Dadant US, Langstroth, Dadant Blatt and Simplex.

You can use up to 10 frames at the same time in the Smalto V Solar Wax Extractors. This saves time and makes wax processing easier for larger colonies, as more wax can be melted out in one pass.

No, the Smalto V Solar Wax Extractors works purely solar and does not require a power connection. The greenhouse effect created by the smoked glass in combination with the insulated double jacket generates the required melting temperature through solar radiation alone.

The Smalto V Solar Wax Extractors are designed to be robust and durable: The body and wax tray are made of stainless steel, the base is made of powder-coated steel, the handles are made of plastic and the lid is made of 6 mm smoked glass. This combination of materials ensures stability, easy cleaning and good heat utilization.

The tilt angle adjustment and the rotatable, lockable base frame allow you to align the glass surface optimally to the sun. The swivel handle also helps you to align the glass so that the sunlight is used in the best possible way and the wax is melted efficiently.

Quick guide - Smalto V Solar Wax Extractors

1. set up

  • Place the melter on a flat, dry surface.
  • Carefully place the appliance on the lid.
  • Place the legs with the holes on the brackets, tighten the screws first by hand, then with Allen keys.
  • Set the melter upright and position it securely.

2. align

  • Unlockthe stand and turn the appliance towards the sun.
  • Adjust the angle of inclination of the glass surface until the sun is as vertical as possible.
  • Lock the stand again.

3. preparing for melting

  • Insert thewax tray and make sure it is securely in place.
  • Insert theframes into the adjustable holder and position them appropriately.
  • Closethe glass lid and lock it airtight with the clamps.

4. melting out

  • Align the melter continuously to the sun in order to utilize maximum heat.
  • Observe the melting process, only open the glass lid if necessary and with caution.
  • After melting, carefully remove the frames, paying attention to the hot wax.

5. after melting and cleaning

  • Open the melter and allow moisture to evaporate.
  • Remove condensation and dirt with hot water and a soft cloth.
  • Store the appliance in a dry place, do not leave it permanently wet or exposed to extreme temperature fluctuations.
