39389

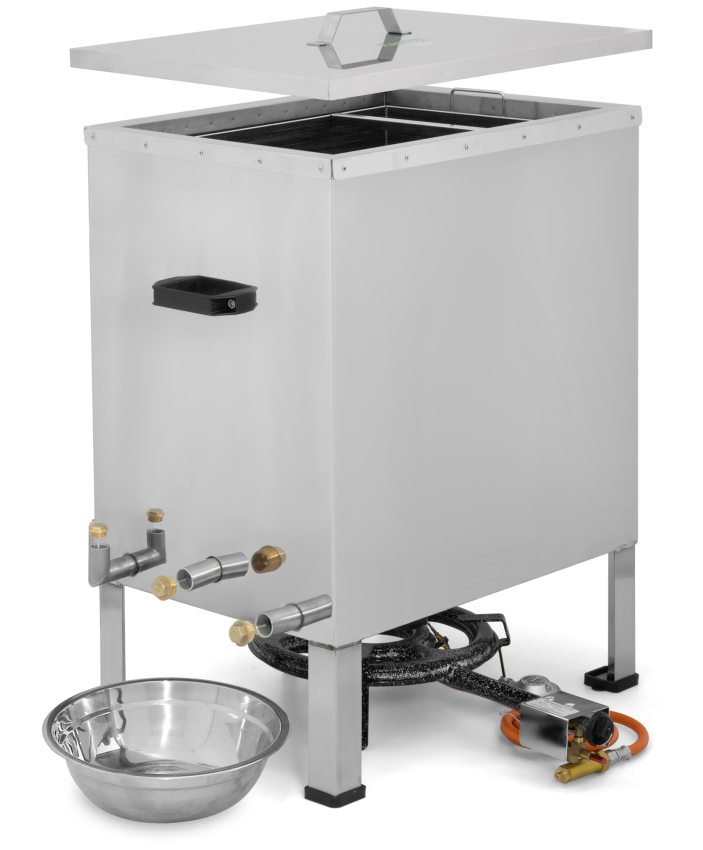

ApiCera® melting comb II insulated gas

Product description

Discover the ApiCera® melting comb II insulated gas, which is specifically designed for beekeeping use. Equipped with three nozzles, the steam wax melter can be flexibly adapted to different work processes. With the enclosed brass plugs, the appliance can also be easily used as a washing container. The insulated side walls ensure high energy efficiency by reducing energy loss. The accessories included in the scope of delivery, e.g. the tripod propane gas burner, in combination with the steam wax melter, increase the efficiency of beekeeping and make beekeeping activities related to honeycomb processing easier.

Number and dimensions of combs

  • 12 combs: Standard size
  • With two suspension rails: suitable for other common comb sizes

ApiCera® melting comb II insulated gas: versatile application options

  • Steam wax melter: for melting out honeycombs
  • Wash container: incl. brass stopper for use as a wash container

Properties of the ApiCera® melting combi II insulated gas

  • high energy efficiency: due to insulated side walls
  • easy handling: as the lid and body are equipped with heat-resistant plastic handles, so-called cold handles
  • clean working: with separate wax and water circuits, with filler neck, inner tray with wax outlet and water drain plug

Accessories included

  • Inner tray: with stand on the underside and wax spout
  • Tripod propane gas burner: with 12.5 kW output and ignition safety device
  • Stainless steel wax tray 2.5 L: for collecting draining wax
  • Honeycomb basket: made of perforated sheet metal with side handles and support rails, which can be used optionally
  • Stopper: to close the outlet, for use as a washing container



in stock
1.058,00 EUR
incl. 19% tax excl. Shipping costs
Add to wish list
Order Quantity allowed in 1-steps!

Product data ApiCera® melting comb II insulated gas

Item no.

39389

Description

ApiCera® Melting comb II insulated gas

Article type

Steam wax melter, melting combi gas, gas-operated

Accessories included

Tripod propane gas burner
  • Output approx. 12.5 kW
  • with ignition safety device

Stainless steel wax bowl 2.5 L

Capacity approx. 2.5 L

Honeycomb basket
  • made of perforated sheet metal
  • with side handles
  • With optional support rails

lid
  • for sealing in the steam
  • with large stainless steel handle

material

Body

stainless steel

Handles
  • Body: heat-resistant plastic (so-called cold handles)
  • Lid: stainless steel

Honeycomb basket

stainless steel

Support rails

Stainless steel

Stopper

brass

Stainless steel wax tray 2.5 L

stainless steel

Feet

rubber

Dimensions

Honeycomb basket
  • External dimensions (L x W x H) approx: 45 x 38 x 45 cm
  • Perforation (W x H) approx: - x - mm

Stainless steel wax bowl 2.5 l

Outer dimensions (Ø x H) approx. 25 x 8 cm

Filler neck

Internal thread diameter approx. 1/2 "

Water drain nozzle
  • Internal thread diameter approx. 3/4 "
  • Drain height: flush with the floor

Wax drain connection
  • Internal thread diameter approx. 3/4 "
  • Drain height approx. 23 cm

External dimensions (L x W x H) approx.

61.5 x 51.5 x 58.5 cm

Internal dimensions (L x W x H) approx.

61.5 x 46.5 x 52.5 cm

Weight

Empty weight approx.

37.92 kg

For approval as a disinfection container, please contact your responsible veterinarian.

Safety instructions

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Independent modifications may impair the functionality and, if not carried out correctly, may result in serious damage to persons and property. The warranty is generally void if unauthorized modifications are made.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest
Read the supplied operating instructions before use.
Blaues Icon mit schematischer Zeichnung von Handschuhen
Wear heat-insulating hand protection.

Never place the container on flammable surfaces; Only place the gas burner on non-flammable and non-melting surfaces; Keep all flammable materials away from the burner; Only work outdoors; Ensure that the location is protected from the wind; There is a risk of fire!

Place the gas cylinder as far away from the burner as possible; Watch out for escaping gas; If this is the case, close the gas supply immediately.

Do not move the container or the gas burner during operation. There is a risk of burns and scalding.

Wear suitable protective clothing such as an acid apron, mouth and eye protection, face protection, rubber boots and gloves when cleaning the frames.

The appliance must be checked for damage, especially leaks, before and after each use.
