39386

ApiCera® Melting Combi II Gas

Product description

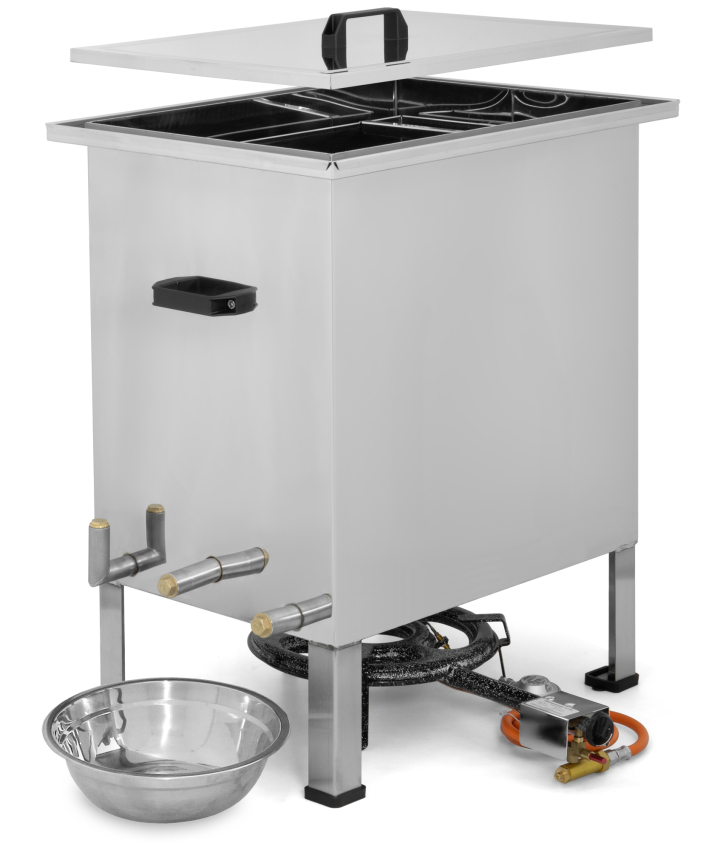

Discover the ApiCera® Melting Combi II Gas made of stainless steel, which is specifically designed for beekeeping use. Equipped with three nozzles, the steam wax melter can be flexibly adapted to different work processes. With the enclosed brass plugs, the appliance can also be easily used as a washing container. As the frame ears rest on the honeycomb basket during melting, they can be inserted and removed quickly and easily. A circumferential channel on the upper edge is used to channel in water and reliably seal the melting chamber. The accessories included in the scope of delivery, e.g. the tripod propane gas burner, increase the efficiency of beekeeping in combination with the steam wax melter and make beekeeping activities related to honeycomb processing easier.

Number and dimensions of combs with support rail

  • 10 combs: Normal size, Zander, Langstroth as well as Dadant US and Dadant Blatt brood or honey chamber
  • Special sizes: with the support rail for optional use also suitable for various special sizes, e.g. Mini Plus and Kuntzsch Hoch

Number and dimensions of combs without support rail

  • 18 honeycombs: Standard size (upright)
  • 15 combs: Standard size One and a half or Dadant Blatt brood chamber combs (upright)

ApiCera® Melting Combi II Gas: versatile applications

  • Steam wax melter: for melting out combs with filler neck, wax outlet and water drain plug. Inner tray with wax outlet, thus separate wax and water circuit
  • Wash container: incl. brass plug for use as a wash container

Features of the ApiCera® Melting Combi II Gas

  • easy handling: as the lid and body are equipped with heat-resistant plastic handles, so-called cold handles
  • efficient beekeeping practice: as the frames ears rest on the honeycomb basket, they can be inserted and removed quickly and easily

Accessories included

  • Tripod propane gas burner: with 12.5 kW output and ignition safety device
  • Stainless steel wax tray 2.5 L: to collect any wax that runs out
  • Honeycomb basket: made of perforated sheet metal with side handles and optional support rail
  • Stopper: to close the outlet, for use as a washing container



in stock
699,00 EUR
incl. 19% tax excl. Shipping costs
Add to cart
Order Quantity allowed in 1-steps!

Product data ApiCera® Melting Combi II Gas

Item no.

39386

Description

ApiCera® Melting Combi II Gas

Article type

Steam wax melter, melting combi gas, gas-operated

Accessories included

Tripod propane gas burner
  • Output approx. 12.5 kW
  • with ignition safety device

Stainless steel wax bowl 2.5 L

Capacity approx. 2.5 L

Honeycomb basket
  • made of perforated sheet metal
  • with side handles
  • With optional support rail

lid
  • for enclosing the steam
  • with large, heat-resistant handle (cold handle)

Material

Body

stainless steel

Handles

heat-resistant plastic (so-called cold handles)

Honeycomb basket

stainless steel

Support rails

stainless steel

Stopper

brass

Stainless steel wax tray 2.5 L

stainless steel

Dimensions

Honeycomb basket
  • External dimensions (L x W x H) approx. 53 x 37.5 x 42 cm
  • Perforation (W x H) approx. 10 x 5 mm

Stainless steel wax bowl 2.5 l

Outer dimensions (Ø x H) approx. 25 x 8 cm

Filler neck

Diameter internal thread approx. 1/2 "

Water drain nozzle
  • Internal thread diameter approx. 3/4 "
  • Drain height: flush with the floor

Wax drain connection
  • Internal thread diameter approx. 3/4 "
  • Drain height approx. 230 mm

External dimensions (L x W x H) approx.

66 x 55 x 80 cm

Weight

Empty weight approx.

19.49 kg

For approval as a disinfection container, please contact your responsible veterinarian.

Safety instructions

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Independent modifications may impair the functionality and, if not carried out correctly, may result in serious damage to persons and property. The warranty is generally void if unauthorized modifications are made.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest
Read the supplied operating instructions before use.
Blaues Icon mit schematischer Zeichnung von Handschuhen
Wear heat-insulating hand protection.

Never place the container on flammable surfaces; Only place the gas burner on non-flammable and non-melting surfaces; Keep all flammable materials away from the burner; Only work outdoors; Ensure that the location is protected from the wind; There is a risk of fire!

Place the gas cylinder as far away from the burner as possible; Watch out for escaping gas; If this is the case, close the gas supply immediately.

Do not move the container or the gas burner during operation. There is a risk of burns and scalding.

Wear suitable protective clothing such as an acid apron, mouth and eye protection, face protection, rubber boots and gloves when cleaning the frames.

The appliance must be checked for damage, especially leaks, before and after each use.
