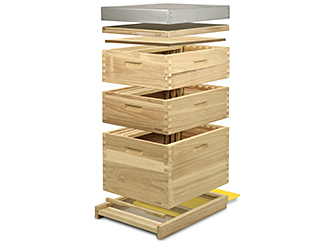

Dadant Blatt Ruetli Hive

consisting of

• a Varroa floor with stainless steel ventilation grid, flight hole wedge and Sticky Boards for Varroa control
• one brood chamber frame for 10 frames of Dadant leaf brood 470 x 300 mm
• two honey frames for 9 frames of Dadant leaf honey 470 x 159 mm
• one 19 mm thick insulation board
• one wooden lid with weatherproof coating
• a galvanized, straight sheet metal lid, is additionally placed over the wooden lid
• External dimensions 43 x 50 cm, height approx. 76 cm,
  Weight approx. 13.5 kg

• Stainless steel ventilation grids
• Flight hole closure and mouse wedge
• Sticky Boards for varroa control,
  made of light-colored plastic, stable and
  boil-proof with Varroa counting diamonds of 5 x 5 cm
  Height approx. 7 cm, weight approx. 1.5 kg

for 10 frames Dadant leaf brood
Size 470 x 300 mm, with wooden spacer
with wooden spacer strips and pronged corner joints.
External dimensions 43 x 50 cm, height approx. 31.5 cm,
Weight approx. 4 kg

for 9 frames Dadant leaf honey
Size 470 x 159 mm, with wooden spacer
with wooden spacer strips and pronged corner joints.
External dimensions 43 x 50 cm, height approx. 17 cm,
Weight approx. 2 kg

made of stainless steel, for inserting into the groove of a Rütli^® frame to stabilize the frames at the bottom.

white, size 430 x 500 mm, to be placed on the frame rebate, additionally equipped with 8 mm spacers on the underside

galvanized, size 430 x 500 mm
for placing on the frame rebate

Made of 8 mm thick and waterproof glued plywood material and a solid wood upper beam, for beekeeping in an adapted brood chamber by using the wooden egg partition as a blind honeycomb
Length of upper beam 470 mm,
Length of the board 435 mm,
total height 300 mm

You can find more differences here

Length of upper beam 475 mm,
Length of the board 439 mm,
Total height 300 mm
Weight approx. 700 g

Inserted between the top frame and lid to regulate the temperature and hive humidity
Dimensions approx. 449 x 377 mm
Thickness approx. 19 mm

suitable for 10 system, Lorenz, Spessart
Rütli^®, Combi and thermoplastic hives

Made of 2 mm thick plastic with angled
and Inner Covers and perforated aluminum plate, to be placed
on the rebate of an empty frame, can be stacked after removing the angle cover to save space,
Size approx. 49.5 x 41.5 x 9 cm

Crystal clear, for placing on the frames,
0.4 mm thick and inherently stable
Size 430 x 500 mm

With weatherproof coating
External dimensions approx. 43 x 50 cm, height 3 cm

is slipped over the inner lid,
galvanized, straight fit
Inner support surface: 52 x 43.5 cm
Height 10.5 cm, weight approx. 2 kg

made of hard foam, for 2 x 5 frames Dadant sheet 470 x 300 mm

• Ventilation and Varroa grids, embedded in the base
• Metal Sticky Boards can be pulled out at the back
• Flight hole slider at the front, can be used on both sides
• Divider with wooden strip
• Dual-purpose top frame: feeder frame and escape partition in one
• Metal outer cover, is slipped over the box
• Compatible with conventional Dadant Blatt Wooden Hives with external dimensions of 43 x 50 cm

Delivered from the factory in light blue
External dimensions approx. 43 x 50 cm, height 45.5 cm
Weight 6 kg
