39387

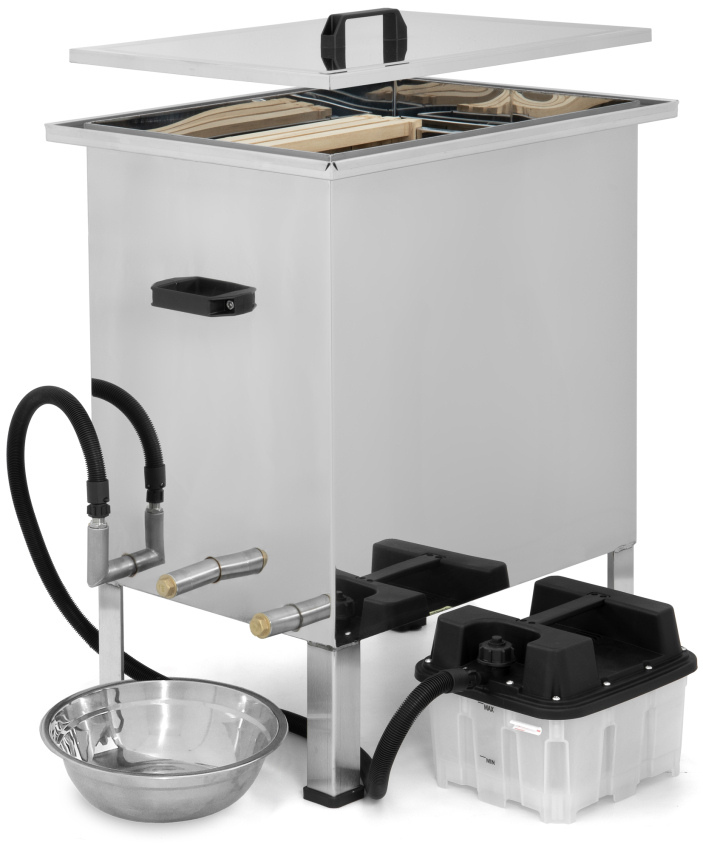

ApiCera® electric melting comb II

Product description

Discover the ApiCera® electric melting combi II made of stainless steel, which is specifically designed for beekeeping use. Equipped with three nozzles, the steam wax melter can be flexibly adapted to different work processes. With the enclosed brass plugs, the appliance can also be easily used as a washing container. As the frame ears rest on the honeycomb basket during melting, they can be inserted and removed quickly and easily. A circumferential channel on the upper edge is used to channel in water and reliably seal the melting chamber. The accessories included in the scope of delivery, e.g. the ApiNord® Dampfmeister Pro 7 liter, in combination with the steam wax melter, increase the efficiency of beekeeping and make beekeeping activities related to honeycomb processing easier.

Number and dimensions of combs with support rail

  • 10 combs: Normal size, Zander, Langstroth as well as Dadant US and Dadant Blatt brood or honey chamber
  • Special sizes: with the support rail for optional use also suitable for various special sizes, e.g. Mini Plus and Kuntzsch Hoch

Number and dimensions of combs without support rail

  • 18 honeycombs: Standard size (upright)
  • 15 combs: Standard size One and a half or Dadant Blatt brood chamber combs (upright)

ApiCera® electric comb melter II: versatile applications

  • Steam wax melter: for melting out combs with filler neck, wax outlet and water drain plug. Inner tray with wax outlet, thus separate wax and water circuit
  • Wash container: incl. brass plug for use as a wash container

Features of the ApiCera® electric melting combi II

  • easy handling: as the lid and body are equipped with heat-resistant plastic handles, so-called cold handles
  • efficient beekeeping practice: as the frames ears rest on the honeycomb basket, they can be inserted and removed quickly and easily

Accessories included

  • ApiNord® Dampfmeister Pro 7 liters: with 230 V / 2.3 kW power and overheating protection, pressure relief valve and insulated steam hose
  • Stainless steel wax tray 2.5 L: for collecting wax that runs out
  • Honeycomb basket: made of perforated sheet metal with side handles and two support rails that can be used optionally
  • Stopper: to close the outlet, for use as a washing container

You can find more steam wax melters and melting combinations here



in stock
668,00 EUR
incl. 19% tax excl. Shipping costs
Add to wish list
Order Quantity allowed in 1-steps!

Product data ApiCera® Melting Combi II electric

Item no.

39387

Designation

ApiCera® Melting comb II electric

Article type

Steam wax melter, electric melting combination, electrically operated

Accessories included

ApiNord® Dampfmeister Pro 7 liters
  • Power 220 - 230 V / 1.9 - 2.2 KW
  • with overheating protection, pressure relief valve, insulated steam hose and lid with carrying handle

Stainless steel wax tray 2.5 L

Filling volume approx. 2.5 L

Honeycomb basket
  • made of perforated sheet metal
  • with side handles
  • With optional support rail

lid
  • for sealing in the steam
  • with large, heat-resistant handle (cold handle)

Material

Body

stainless steel

Handles

heat-resistant plastic (so-called cold handles)

Honeycomb basket

stainless steel

Support rails

stainless steel

Stopper

brass

Stainless steel wax tray 2.5 L

stainless steel

Dimensions

Honeycomb basket
  • External dimensions (L x W x H) approx. 53 x 37.5 x 42 cm
  • Perforation (W x H) approx. 10 x 5 mm

Stainless steel wax bowl 2.5 l
  • Dimensions (Ø x H) approx. 25 x 8 cm

Filler neck

Diameter internal thread approx. 1/2 "

Water drain nozzle
  • Internal thread diameter approx. 3/4 "
  • Drain height: flush with the floor

Wax drain connection
  • Internal thread diameter approx. 3/4 "
  • Drain height approx. 230 mm

External dimensions (L x W x H) approx.

66 x 55 x 80 cm

Weight

Empty weight approx.

25.1 kg

For approval as a disinfection container, please contact your responsible veterinarian.

Safety instructions

The safety and operating instructions in the supplied instructions for use and the statutory accident prevention regulations must be observed.

Persons who are unable to operate this appliance safely due to their physical, sensory or mental capabilities, inexperience or lack of knowledge must not use it or must not use it without supervision or instruction by a responsible person.

Independent modifications can impair the functionality and, if not carried out correctly, can lead to serious damage to persons and property. The warranty is generally void if unauthorized modifications are made.

Blaues Icon mit schematischer Zeichnung einer Person, die eine Broschüre liest
Read the supplied operating instructions before use.
Blaues Icon mit schematischer Zeichnung von Handschuhen
Wear heat-insulating hand protection.

Never place the container or the steam master on flammable surfaces.

If water gets on the appliance during filling, wipe it off immediately with a cloth! There is a risk of electric shock; never allow the steam generator to run dry. Disconnect the mains plug before refilling the water. Wait until the appliance has cooled down. Never top up during operation.

Never tighten or remove the pressure relief valve! There is a risk of explosion or burns.

Do not move the container or the steam master during operation. There is a risk of burns and scalding.

Do not operate the appliance with a timer or remote control.

Wear suitable protective clothing such as an acid apron, mouth and eye protection, face protection, rubber boots and gloves when cleaning the frames.

The appliance must be checked for damage, especially leaks, before and after each use.
