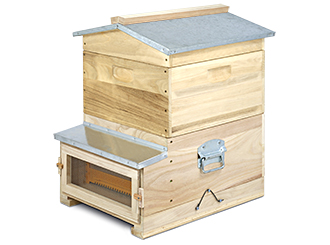

DN Heide Hive

consisting of:

• Bottom frame with stainless steel ventilation grille,
  Flight hole slider with mouse protection,
  Moving front with moving grid Attachment frame,
  Sticky Boards for Varroa control
• Top frame 11 frames standard size with
  394 mm, identical in construction to the 11 standard size hive
  Art. 2406
• Wooden lid with insulation
• galvanized sheet metal lid hood
• External dimensions approx. 55 x 44.4 cm, height 58 cm

consisting of:

• Bottom frame with stainless steel ventilation grille,
  Flight hole slider with mouse protection,
  Moving front with moving grid Attachment frame,
  Sticky Boards for Varroa control
• Top frame 11 frames standard size with
  394 mm, identical in construction to the 11 standard size hive
  Art. 2406
• Saddle roof with sheet metal fittings
• External dimensions approx. 55 x 50 cm, height 65 cm

Bottom frame with stainless steel ventilation grille, flight hole slider with mouse protection, traveling front with traveling grille attachment frame, bottom slider for Varroa control

for 11 frames standard size 394 x 110 mm
Height 12 cm, weight approx. 1.5 kg

for 11 frames standard size 394 x 159 mm
Height 17 cm, weight approx. 2 kg

for 11 frames standard size 394 x 223 mm
Height 23 cm, weight approx. 3 kg

Made of 8 mm thick and waterproof glued plywood material and a solid wood upper beam, for beekeeping in an adapted brood chamber by using the wooden egg partition as a blind honeycomb
Length of upper beam 394 mm,
Length of the frame 370 mm,
total height 223 mm

You can find more differences here

for 11 frames standard size 223 mm high with display window, insulation panel, glass pane and closing panel. Height 23 cm, weight approx. 4 kg

with entrance hole and lockable bunghole. By using the Bee Escapes supplied, the false floor can also be used as a honey removal tray. The Bee Escapes are supplied loose and attached underneath the bunghole using thumbtacks, for example
Height 4.5 cm, weight approx. 1 kg

glued and screwed together with side access and
stable aluminum perforated bracket, capacity 8 liters, height 11 cm,
Weight approx. 2 kg

We recommend painting the inside with vat paint Art. 2127 or ApiDana^® feeder frame paint Art. 21275

as a replacement

combines top ventilator and false bottom.
For attaching to the frames, so that the bee colonies do not get dusty when moving. With stainless steel ventilation grille and rebate. Additionally with closable flight hole, for use as a false bottom with proboscis contact
Height 4 cm, weight approx. 1 kg

For placing on the frames
galvanized, size 395 x 393 mm

For placing on the frames
Stainless steel 1.4016, size 395 x 393 mm

For placing on the frames
Dimensions approx: 395 x 393 mm, 3 mm thick

for placing on the frames, 0.4 mm thick
and inherently stable, dimensions approx: 410 x 410 mm

for placing on the frames, 0.32 mm thick
and flexible, size 410 x 410 mm

Approx. dimensions: 395 x 393 mm

Solid and knot-free wood. With galvanized sheet metal cover and all-round roof overhang. Special feature: The sheet metal cover is made in one piece and is not cut through by a central seam. External dimensions 50 x 50 cm, height 13 cm, weight 3.8 kg

solid and made of knot-free wood and with all-round roof overhang with weatherproof copper fittings and ridge strip.
External dimensions approx. 49 x 49.5 cm, height approx. 15 cm,
Weight approx. 4.5 kg
